SKU: NCC6ASLDGEL

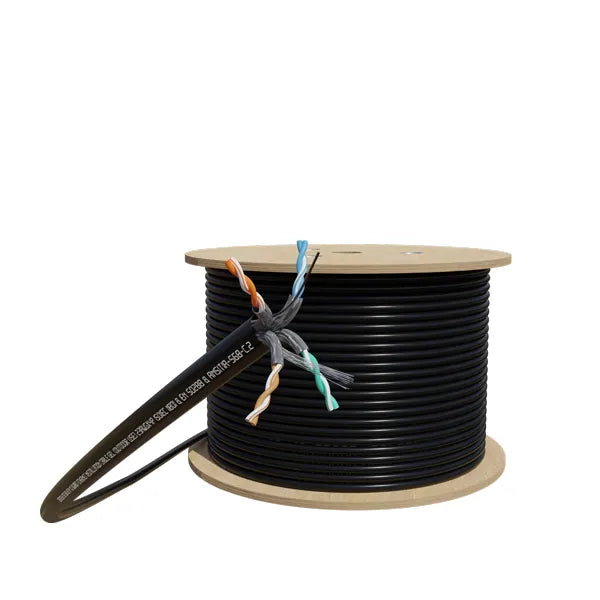

305M Cat6A 10G U/FTP External (Underground) Cable Roll
305M Cat6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use.
Key Features
-
4K UHD Ready
-
305m Cat6 Black U/FTP External Solid Cable Roll 500MHz
-
100% Bare Copper Cable
-
23AWGx4P
-
Individual pair foil shield
-
Internal drain wire
-
Integrated pair separator
-
Internal strength member
-
PE Jacket for UV protection
-
Dry core layer for moisture protection
-
ROHS, RCM and REACH compliant
Fast Delivery
Same day dispatch before 2PM
Quality Guaranteed
Tested and verified products
Customer Service
Friendly help when you need it
Warranty Information
This product comes with our comprehensive warranty coverage:
CERTECH 25 Year Certified Warranty
Compatible with CERTECH 25 Year Certified Warranty Program when installed by certified technicians and used with CERTECH Cat6A jacks
For full warranty details, please view our warranty policy or contact customer support.
Compatibility
This product is compatible with:
- Backwards compatible to 1000BASE-Tx Gigabit Ethernet, 10BASE-T, 100BASE-T Fast Ethernet (IEEE 802.3)
- External cable runs (both aerial/ above ground and underground)
- Supports 10GBASE-T Ethernet
- 500 MHz High Bandwidth Audio Visual
- Voice, T1, ISDN
- ONVIF Security Protocol
Not sure if this product is compatible with your equipment? Contact our technical team.
Product Description
305M Cat6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket and a dry core layer.
Designed with a strength member for improved pulling tension, an overall foil shield and drain wire for earth continuity. With Cat6A performance, this cable guarantees data transmission speeds of up to 10 gigabits per second (10 Gbps).
Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations.
