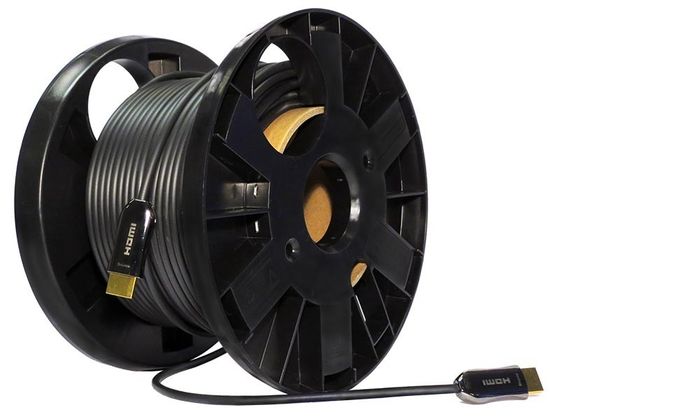

15M HDMI Active Optical Cable, High Speed 18GBPS, 2160P 4K@60Hz
The CERTECH 15M HDMI Active Optical Cable delivers UHD 4K@60Hz (4:4:4) video over a reliable fibre optic link with 18 Gbps bandwidth. Using hybrid optical fibre and copper construction, it provides lossless HDMI signal transmission with zero EMI interference — far outperforming standard copper HDMI cables at this length. No external power source is required; the cable is powered directly from the HDMI +5V rail.
| 📺 4K@60Hz (4:4:4) | ⚡ 18 Gbps Bandwidth | 🔒 HDCP 1.4/2.2 | 💡 No External Power | 📏 15M Length |
Specifications
| SKU | CHDMIAOCPRO15 |
| Cable Length | 15m |
| Connector Type | HDMI Type A |
| Transmission Bandwidth | 18 Gbps |
| Supported Resolutions | 480P, 720P, 1080i, 1080P, 3D, 4K@60Hz (4:4:4) |
| HDCP Version | HDCP 1.4 / 2.2 |
| Cable Construction | Hybrid – Optical Fibre (50/125µm) & Copper Wire |
| Optical Engine | 4 CH 850nm VCSEL/PIN, In-shell |
| Power Source | HDMI +5V (no external power required) |
| Working Current | ≤45mA |
| Power Consumption | ≤250mW |
| Directionality | Directional (source to display) |
Key Features
Active Optical Fibre Transmission
Uses 50/125µm optical fibre with an in-shell 4-channel 850nm VCSEL/PIN light engine to carry the HDMI signal, delivering zero signal loss over the full 15-metre run — something standard copper HDMI cables cannot reliably achieve at this distance.
Full 4K@60Hz at 4:4:4 Chroma
With 18 Gbps bandwidth, the cable supports 4K UHD at 60Hz with full 4:4:4 chroma subsampling — essential for sharp text rendering, professional video editing, and digital signage applications.
Zero EMI Interference
The optical fibre core is completely immune to electromagnetic interference, making this cable ideal for electrically noisy environments such as AV racks, commercial fit-outs, and industrial installations.
No External Power Required
Draws all power from the HDMI +5V rail at ≤250mW, so it operates exactly like a short passive cable with no adapters, injectors, or power supplies needed.
HDCP 1.4 & 2.2 Compliant
Supports both HDCP 1.4 and 2.2 content protection, ensuring compatibility with Blu-ray players, streaming devices, pay TV set-top boxes, and other protected content sources.
