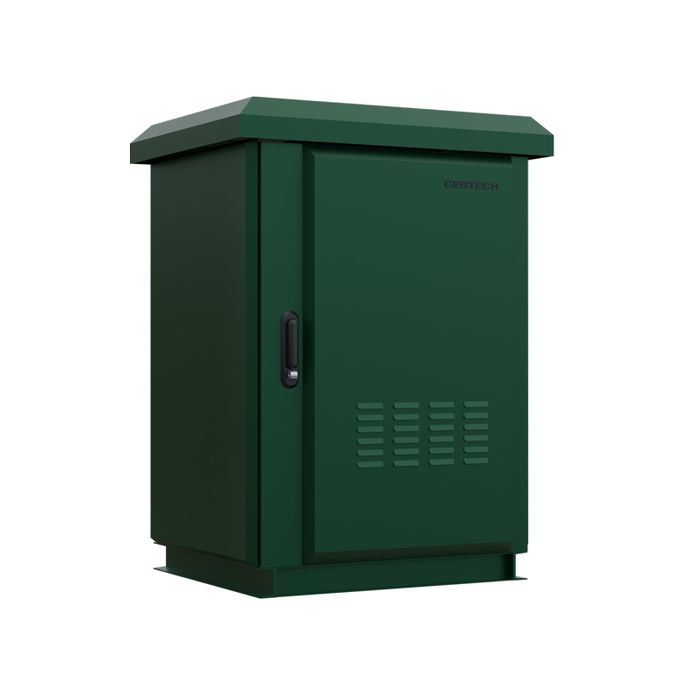

18RU 600mm Deep Outdoor Freestanding Cabinet. IP45 Rated, Forest Green **Made to Order**
The CERTECH 18RU 600mm Deep Outdoor Freestanding Cabinet is built to protect sensitive network equipment in harsh environments exposed to dust and water. IP45 rated with an 800kg static loading capacity, this fully welded cold rolled steel enclosure features a lockable front door and ships fully assembled for rapid deployment. Available in Forest Green. Made to order.
| 🛡️ IP45 Rated | 📐 Universal 19" Standard | 🏋️ 800kg Load Capacity | 🔧 Made to Order |
Specifications
| SKU | NROD188X6FG |
| Rack Units | 18RU |
| IP Rating | IP45 |
| Type | Outdoor freestanding with front door |
| Rack Standard | EIA-310 compliant, universal 19" mounting |
| Static Loading Capacity | 800 kg |
| Cabinet Depth | 600 mm |
| Mounting Rail Depth (As Set) | 378 mm |
| Construction | Fully welded cold rolled steel |
| Mounting Hole Type | Square |
| Colour | Forest Green |
| Security | Lockable front door |
| Availability | Made to order |
| Delivery | Ships fully assembled |
Key Features
Fans & Thermostat Control
Thermostat-controlled fans with dust filters are accessible via a pivoting rain hood — service the fans without removing any rack-mounted equipment.
Ventilation & Dust Filtration
Natural wind cooling through filtered front-door vents and a 25 mm vented rain hood lip angled at 75 mm for water run-off. Filters are front-accessible for easy maintenance.
Cable Entry
Base-panel cable entry plates and glands provide clean, organised cable access from below the rack.
Adjustable Mounting Rails
Vertical rails adjust fore and aft to accommodate varying equipment depths, with a default rail depth of 378 mm. Rack units are numbered front and back for easy installation.
Front Door
The lockable front door offers 130° of movement with left-to-right swing, fitted with a polyurethane sealing strip for water and dust protection.
Rugged Construction
Fully welded cold rolled steel design for maximum durability in demanding outdoor environments.
