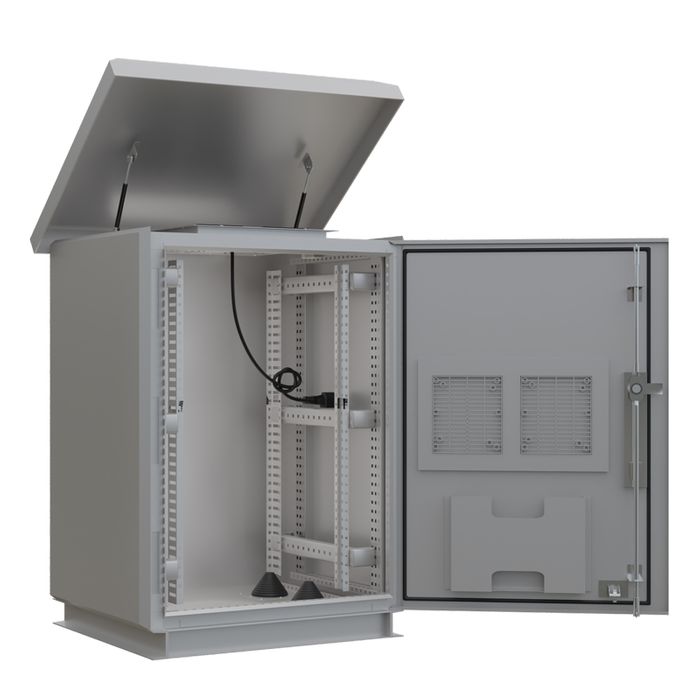

18RU 600mm Deep Outdoor Freestanding Cabinet. IP45 Rated, Grey
The CERTECH 18RU 600mm Deep Outdoor Freestanding Cabinet is an IP45-rated enclosure designed to protect sensitive network equipment from dust, water, and harsh environmental conditions. Constructed from fully welded cold rolled steel with an 800kg static loading capacity, it delivers reliable protection in a compact form factor suited to space-constrained outdoor and industrial sites.
| 🛡️ IP45 Rated | 🏗️ 800kg Load Capacity | 🔒 Lockable Front Door | 📐 18RU Capacity | 🔧 Fully Welded |
Specifications
| SKU | NROD188X6GY |
| Rack Units | 18RU |
| Product Type | Outdoor – IP45 Rated Freestanding |
| Dimensions (W × D × H) | 849mm × 661mm × 1125mm |
| Usable Depth | 600mm |
| Static Loading Capacity | 800kg |
| Material | Cold Rolled Steel |
| Colour | Grey or Forest Green |
| Mounting Hole Type | Square |
| Door | Lockable front door (130° swing, left to right) |
| Construction | Fully Welded |
| IP Rating | IP45 |
| Rack Mounting Compatibility | EIA-310 compliant 19″ equipment |
Key Features
IP45 Dust & Water Protection
Rated to IP45, the cabinet shields your equipment from solid particles larger than 1mm and low-pressure water jets from any direction — making it well suited to exposed outdoor sites and harsh industrial environments.
Ventilation & Dust Filtration
Natural wind cooling flows through filtered vents on the front door and under the pivoting rain hood, which features a 25mm vented lip angled at 75mm for water run-off. Filters are accessible from the front door, so servicing never requires removing rack-mounted equipment.
Thermostat-Controlled Fans
Integrated fans with dust filters sit beneath the pivoting rain hood and are managed by a built-in thermostat for automated airflow control. Fans can be serviced simply by lifting the hood — no need to disturb installed equipment.
130° Front Door with Polyurethane Seal
The lockable front door swings a full 130 degrees from left to right for generous access, and is fitted with a polyurethane joint strip to maintain dust and water resistance.
Adjustable Vertical Mounting Rails
Mounting rails adjust back and forth to accommodate various equipment depths, with rack units numbered on both the front and rear for straightforward installation.
Base-Panel Cable Entry
Cable entry plates and glands are located on the base panel, providing clean and convenient cable access from below.
Fully Welded Steel Construction
The fully welded cold rolled steel frame delivers exceptional rigidity and an 800kg static loading capacity, arriving fully assembled for quick on-site deployment.
