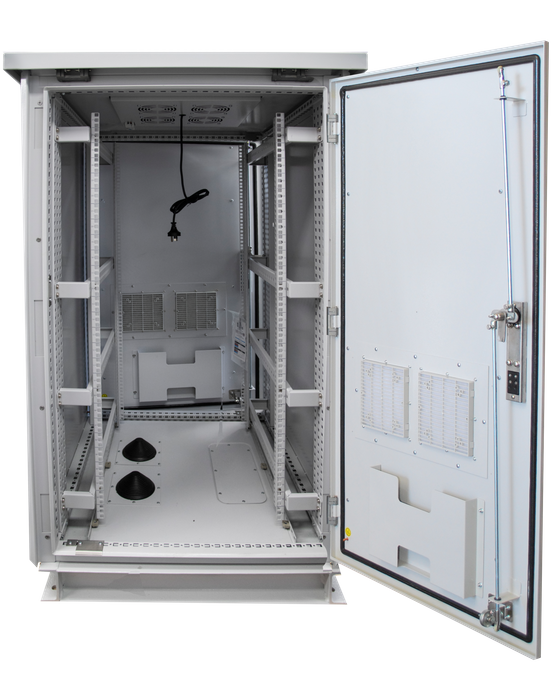

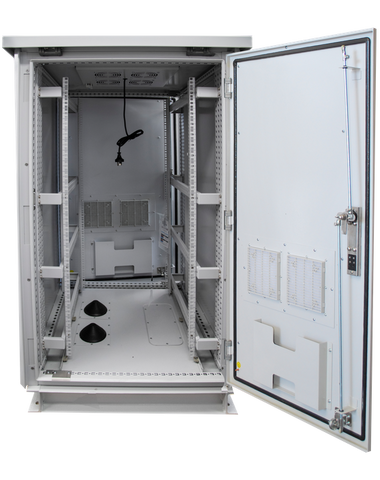

18RU 800mm Deep Outdoor Freestanding Cabinet w/ Front & Rear Doors. IP45 Rated
The CERTECH 18RU 800mm Deep Outdoor Freestanding Cabinet is built to protect sensitive network equipment in harsh environments exposed to dust and water. IP45 rated with an 800kg static loading capacity, this fully welded cold rolled steel enclosure features lockable front and rear doors and ships fully assembled for rapid deployment. Available in Grey or Forest Green.
| 🛡️ IP45 Rated | 📐 Universal 19" Standard | 🏋️ 800kg Load Capacity | 📦 Ships Fully Assembled |
Specifications
| SKU | NROD188X8GY-DD |
| Rack Units | 18RU |
| IP Rating | IP45 |
| Type | Outdoor freestanding with front & rear doors |
| Rack Standard | EIA-310 compliant, universal 19" mounting |
| Static Loading Capacity | 800 kg |
| Construction | Fully welded cold rolled steel |
| Mounting Hole Type | Square |
| Colour | Grey or Forest Green |
| Dimensions (W × D × H) | 849 mm × 866 mm × 1125 mm |
| Security | Lockable front & rear doors |
| Delivery | Ships fully assembled |
Key Features
Fans & Thermostat Control
Thermostat-controlled fans with dust filters are accessible via a pivoting rain hood — service the fans without removing any rack-mounted equipment.
Ventilation & Dust Filtration
Natural wind cooling through filtered front-door vents and a 25 mm vented rain hood lip angled at 75 mm for water run-off. Filters are front-accessible for easy maintenance.
Cable Entry
Base-panel cable entry plates and glands provide clean, organised cable access from below the rack.
Adjustable Mounting Rails
Vertical rails adjust fore and aft to accommodate varying equipment depths. Rack units are numbered front and back for easy installation.
Front & Rear Doors
Both doors offer 130° of movement with left-to-right swing, fitted with polyurethane sealing strips for water and dust protection.
Rugged Construction
Fully welded cold rolled steel design for maximum durability in demanding outdoor environments.
