SKU: PP24C6K

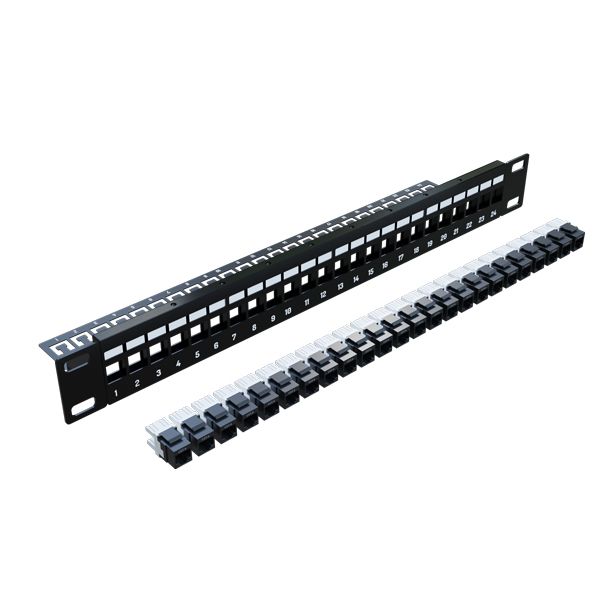

24 Port 19" Cat6 UTP Modular Patch Panel, Complete with 24 x Cat6 Black Keystone Jacks
Cat6 UTP Modular Patch Panel, complete with 24 x Cat6 UTP Keystone Jacks.
Key Features
-
Cold rolled steel and accepts up to 24 Keystone jacks (included)
-
removable cable management bar is also made of steel
-
Keystone jacks can be terminated to the cable and then snapped into each individual port on the patch panel
-
Dims (including rear support bar): 482 (W) x 44 (H) x 94 (D)
-
Dual IDC connector can accept 23-26 AWG solid and stranded cables
-
Supports both T568 A&B wiring
-
Performance conforms to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specification
Fast Delivery
Same day dispatch before 2PM
Quality Guaranteed
Tested and verified products
Customer Service
Friendly help when you need it
Product Description
Cat6 UTP Modular Patch Panel, complete with 24 x Cat6 UTP Keystone Jacks. The PP24C6K is made of cold rolled steel and accepts up to 24 Keystone jacks (included). The removable cable management bar is also made of steel. The front of the panel is equipped with a transparent holder for port labeling (labels included). Keystone jacks can be terminated to the cable and then snapped into each individual port on the patch panel.
APPLICATIONS:
10Base-T/100Base-Tx
100Base-T4/1000Base-Tx
ATM-25/ATM-51/ATM-155
100VG-AnyLan
TR-4/TR-16 Active/TR16 Passive
ELECTRICAL SPECS:
Dielectric Strength : 1000V RMS for 1min
Insulation Resistance : 10 M min
Contact Resistance : 2 M per contact
Temperature Range : 10 to 60 max
Humidity : 10%-65%
PHYSICAL SPECS:
High impact plastic housing, Flame retardant UL 94V-0
IDC Contact : 100 inch nickel plated over phosphor bronze
IDC Operating life : Minimum 250 Re-terminations
Jack Contact : Phosphor bronze, 50 inch gold plating over nickel plating in contact area
Jack Operating life : Minimum 750 insertions
PCB : FR-4, 1.6mm thickness
