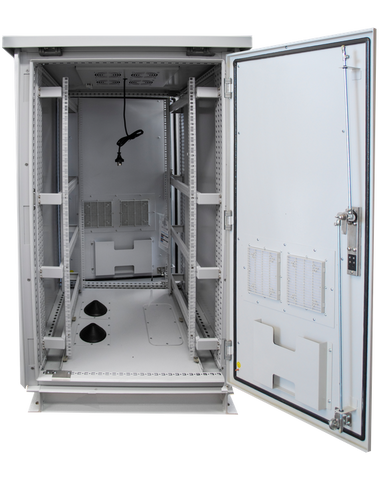

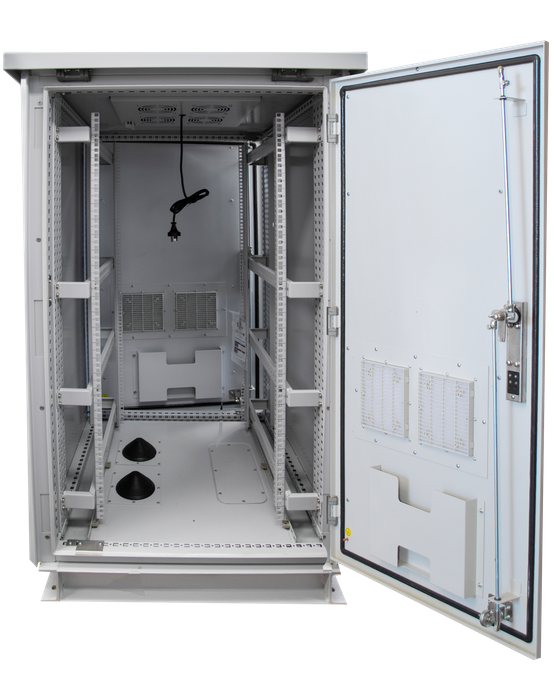

24RU 800mm Deep Outdoor Freestanding Cabinet w/ Front & Rear Doors. IP45 Rated. Colour: Grey
The CERTECH 24RU 800mm Deep Outdoor Freestanding Cabinet is a robust enclosure designed to house and protect critical electronic equipment in demanding environments. Built from SGCC steel with a durable zinc powder coating for superior corrosion resistance, this IP45 rated cabinet features lockable front and rear doors and supports an 800kg static loading capacity. Available in Grey.
| 🛡️ IP45 Rated | 📐 Universal 19" Standard | 🏋️ 800kg Load Capacity | 🔒 Zinc Powder Coated |
Specifications
| SKU | NROD248X8GY-DD-V2 |
| Rack Units | 24RU |
| IP Rating | IP45 |
| Type | Outdoor freestanding with front & rear doors |
| Rack Standard | EIA-310 compliant, universal 19" mounting |
| Static Loading Capacity | 800 kg |
| Material | SGCC steel with zinc powder coating |
| Mounting Hole Type | Square |
| Colour | Grey |
| Dimensions (W × D × H) | 849 mm × 866 mm × 1385 mm |
| Security | Lockable front & rear doors |
| Delivery | Ships fully assembled |
Key Features
IP45 Dust & Water Protection
Rated IP45 for protection against dust ingress and water jets, making the cabinet suitable for both indoor and outdoor installations across a range of weather conditions.
Corrosion-Resistant Finish
SGCC steel with a zinc powder coating provides superior rust and corrosion resistance, extending the lifespan of the rack even in harsh outdoor environments.
Front & Rear Doors
Both lockable doors offer 130° of movement with left-to-right swing, fitted with polyurethane sealing strips for water and dust protection.
Fans & Thermostat Control
Thermostat-controlled fans with dust filters are accessible via a pivoting rain hood — service the fans without removing any rack-mounted equipment.
Ventilation & Dust Filtration
Natural wind cooling through filtered front-door vents and a 25 mm vented rain hood lip angled at 75 mm for water run-off. Filters are front-accessible for easy maintenance.
Cable Entry
Base-panel cable entry plates and glands provide clean, organised cable access from below the rack.
Adjustable Mounting Rails
Vertical rails adjust fore and aft to accommodate varying equipment depths. Rack units are numbered front and back for easy installation.
Applications
Telecommunications
Housing base stations, switching equipment, and other telecommunications infrastructure.
Industrial Environments
Enclosing control panels, PLCs, and other industrial automation equipment.
Outdoor Installations
Suitable for roadside cabinets, remote monitoring stations, and other exposed outdoor locations.
