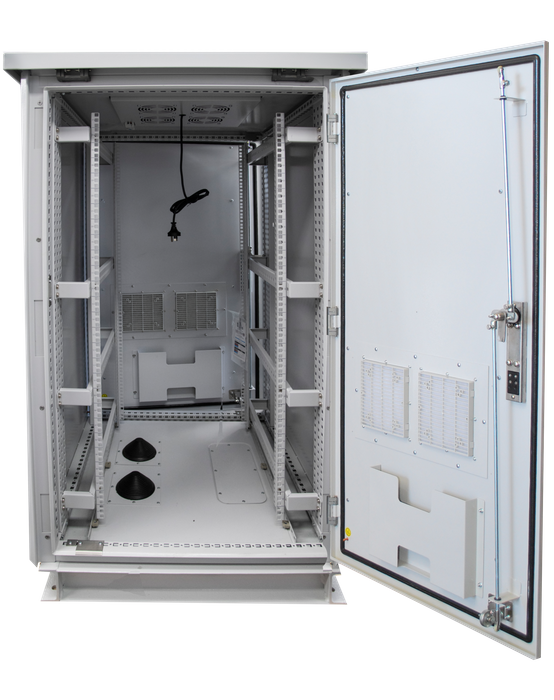

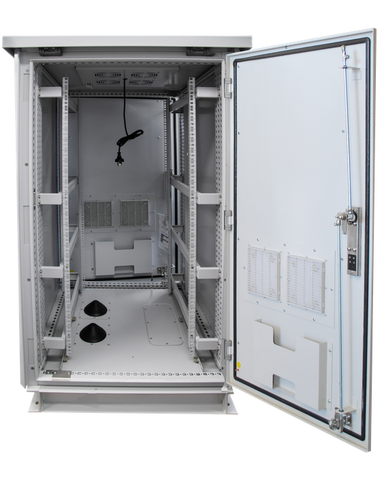

27RU 800mm Deep Outdoor Freestanding Cabinet w/ Front & Rear Doors. IP45 Rated
CERTECH IP Rated Racks are purpose-built to protect sensitive network equipment in harsh environments where dust and water exposure is a concern. Available in wall-mounted and free-standing configurations, these tough, robust enclosures deliver reliable protection without compromising accessibility.
| 🛡️ IP45 & IP65 Rated | 📐 Universal 19" Standard | ✅ 2-Year Warranty | 📦 Ships Fully Assembled |
Specifications
| IP Rating | Free-standing: IP45 | Wall mount: IP45 & IP65 |
| Rack Standard | EIA-310 compliant, universal 19" mounting |
| Construction | Fully welded — cold rolled steel or SUS316 stainless steel |
| Door Movement | 130° swing, left-to-right, with polyurethane water & dust seal |
| Mounting Rails | Adjustable depth, numbered front & back |
| Delivery | Ships fully assembled for rapid deployment |
| Warranty | 2 years (within static loading specs & normal conditions) |
Key Features
Fans & Thermostat Control (IP45 Models)
Thermostat-controlled fans with dust filters are accessible via a pivoting rain hood — service the fans without removing any rack-mounted equipment.
Ventilation & Dust Filtration (IP45 Models)
Natural wind cooling through filtered front-door vents and a 25 mm vented rain hood lip angled at 75 mm for water run-off. Filters are front-accessible for easy maintenance.
Cable Entry
Base-panel cable entry plates and glands provide clean, organised cable access from below the rack.
Adjustable Mounting Rails
Vertical rails adjust fore and aft to accommodate varying equipment depths. Rack units are numbered front and back for easy installation.
Front & Rear Doors
Both doors offer 130° of movement with left-to-right swing, fitted with polyurethane sealing strips for water and dust protection.
Rugged Construction
Fully welded design in cold rolled steel or SUS316 stainless steel for maximum durability in demanding environments.
| Stock Code | NROD278X8GY-DD |
| Rack Units | 27RU |
| IP Rating | IP45 |
| Product Type | Outdoor Freestanding Cabinet |
| Material | SGCC+Zinc Powder Coated |
| Colour | Grey or Forest Green |
| Product Height | 1525mm |
| Product Width | 849mm |
| Product Depth | 866mm |
| Static Loading Capacity | 800kgs |
| Mounting Hole Type | Square |
| Assembly | Fully Welded Construction |
| Rack Compatibility | EIA-310 compliant 19-inch |
| Warranty (Rack) | 2 years |
| Warranty (Fans) | 1 year |
Package Contents
- 1 × 27RU 800mm Deep Outdoor Freestanding Cabinet w/ Front & Rear Doors. IP45 Rated
