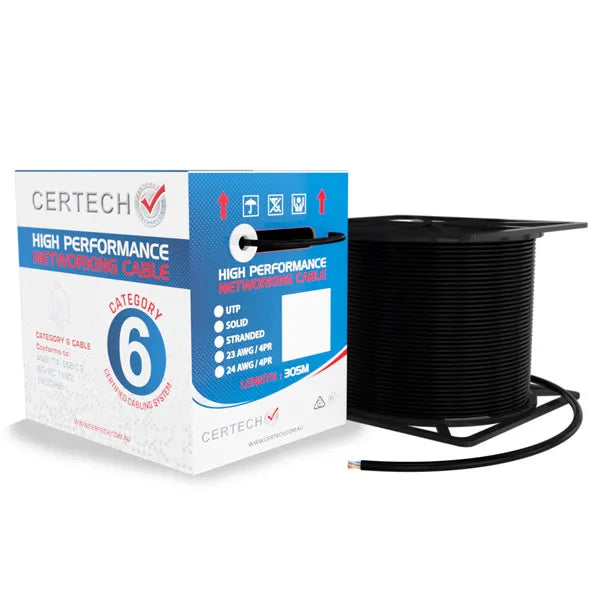

305M Cat6 U/UTP Solid Cable Roll
Premium Cat6 U/UTP shielded cable with advanced foil shielding for superior performance. This latest ethernet cable technology represents the next generation of network cable infrastructure.
Technical Specifications:
- 4 x copper conductor twisted pairs with pair separator
- Overall foil shield for enhanced EMI protection
- LSZH (Low Smoke Zero Halogen) jacket for safety
- Strength member for improved pulling tension during installation
- Drain wire ensures proper earth continuity
- Exceeds Cat6 performance standards
- Fully compatible with professional cable tester equipment
Professional Applications:
This shielded Cat 6 cable is engineered for high-performance installations where EMI protection is critical. The foil shielding makes this ethernet cable and LAN cable ideal for data centers, industrial environments, and professional networking infrastructure.
Available in network cable black and other professional colours. The black ethernet cable option provides a clean, professional appearance for visible installations while the LSZH jacket ensures safety compliance.
Home Networks
Connect computers, gaming consoles and smart TVs
Data Centres
Server connections and rack installations
Office Networks
Workstation connectivity and business infrastructure
| SKU | NCC6LSZHXX |
| Name | Cat6 UTP Cable LSZH Jacket |
| Length | 305m |
| Packaging | Reel in Box |
| Category | Cat6 UTP |
| Cable Type | UTP |
| Conductor Material | Bare Copper Cable |
| Gauge | 23AWG |
| Cable Gauge | 23AWG |
| Jacket Material | LSZH |
| Jacket Thickness | 0.55±0.05mm |
| Insulation Material | HDPE |
| Cable Length | 305m |
| Cable Weight | 13.1kg/305m |
| Cable Diameter | 0.55 |
| Operating Frequency | 250MHz |
| DC Resistance Unbalanced Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC Resistance Max | ≤9.38Ω/100m |
| Dielectric Strength Max | DC 1000V 1min No Breakdown |
| Mutual Capacitance at Frequency | ≤5.8nF/100m |
| NVP | 69% |
| Flame Test Method | IEC60332-1-2 |
| Installation Temperature | -20 ~ +60 degrees celsius |
| Operating Temperature | -40 ~ +75 degrees celsius |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Individual Pair Shielding | None |
| Overall Shield | None |
| Indoor Rated | LSZH jacket suitable for indoor use |
| Frequency Rating | 250MHz |
| Data Rate | Up to 1 Gbps |
| Application | Gigabit Ethernet |
| Flame Rating | IEC60332-1-2 compliant - suitable for indoor installations |
| Packaging Type | Reel in box for standard installations |
| Weight Note | Lightest cable (13.1kg) due to no shielding and Cat6 construction |
Package Contents
- 1 × 305M Cat6 U/UTP Solid Cable Roll
