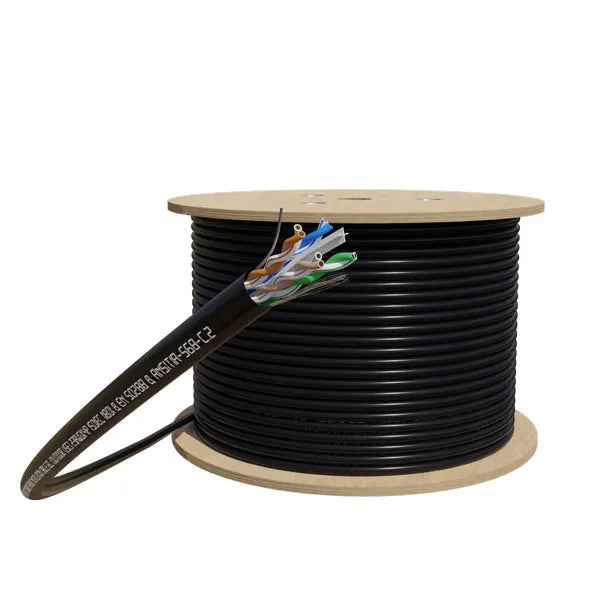

305M Cat6 U/UTP Solid Gel Filled (Underground) Cable Roll
High-performance network cable designed for outdoor and underground installations. This premium Cat6 ethernet cable and LAN cable features gel-filled construction for superior moisture protection.
Technical Specifications:
- 4 x copper conductor twisted pairs for reliable data transmission
- PE jacket with strength member for durability
- Dry core layer prevents water ingress
- Guarantees speeds up to 1 Gbps
- UV-resistant for long-term outdoor performance
- Compatible with standard cable tester equipment
Installation Notes:
This underground-rated LAN cable requires special plugs for termination (JFTPC6ASH-SB, 100029C, 202048J). Ideal for professional contractors installing the latest ethernet cable infrastructure in demanding outdoor environments.
Available in black ethernet cable and other colours. This network cable black option is perfect for discreet underground routing and professional installations.
Home Networks
Connect computers, gaming consoles and smart TVs
Data Centres
Server connections and rack installations
Office Networks
Workstation connectivity and business infrastructure
| SKU | NCC6SLDGEL |
| Name | Cat6 UTP Cable PE UV Stabilised Jacket Outdoor |
| Length | 305m |
| Packaging | Wooden Drum |
| Category | Cat6 UTP |
| Cable Type | UTP |
| Conductor Material | Bare Copper Cable |
| Gauge | 23AWG |
| Cable Gauge | 23AWG |
| Jacket Material | PE (UV Stabilised) |
| Jacket Thickness | 0.60±0.05mm |
| Insulation Material | HDPE |
| Cable Length | 305m |
| Cable Weight | 14.3kg/305m |
| Cable Diameter | 0.57 |
| Operating Frequency | 250MHz |
| DC Resistance Unbalanced Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC Resistance Max | ≤9.38Ω/100m |
| Dielectric Strength Max | DC 1000V 1min No Breakdown |
| Mutual Capacitance at Frequency | ≤5.8nF/100m |
| NVP | 69% |
| Flame Test Method | No |
| Installation Temperature | -20 ~ +60 degrees celsius |
| Operating Temperature | -40 ~ +75 degrees celsius |
| Shielding Type | UTP (Unshielded Twisted Pair) |
| Individual Pair Shielding | None |
| Overall Shield | None |
| Outdoor Rated | PE jacket with UV stabilisation for extended outdoor use |
| Frequency Rating | 250MHz |
| Data Rate | Up to 1 Gbps |
| Application | Gigabit Ethernet |
| Packaging Type | Wooden drum for outdoor/bulk installations |
| UV Protection | UV stabilised PE jacket for direct sunlight exposure |
| Application Type | External/outdoor networking installations with UV protection |
Package Contents
- 1 × 305M Cat6 U/UTP Solid Gel Filled (Underground) Cable Roll
