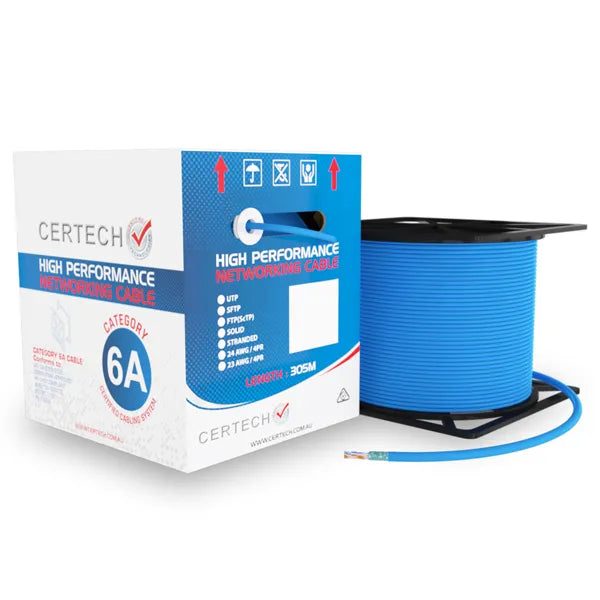

305M Cat6A 10G F/UTP Cable Roll
Secure checkout:
Store Availability
Sydney Warehouse
– In stock | Usually ready in 2 hours
1/33 Heathcote Road
,
Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description
The Cat6A F/UTP cable consists of 4 x copper conductor twisted pairs and a LSZH jacket, separated by a pair separator and wrapped in an overall foil shield. Designed with a strength member for improved pulling tension and drain wire for earth continuity.
Cat6A cabling solutions support data transmission speeds of up to 10 gigabits per second (10 Gbps).
Applications
Home Networks
Connect computers, gaming consoles and smart TVs
Data Centres
Server connections and rack installations
Office Networks
Workstation connectivity and business infrastructure
| SKU | NCC6AFUTPXX |
| Name | 305M Cat6A 10G F/UTP Solid Cable, LSZH Jacket |
| Length | 305m |
| Packaging | Reel in Box |
| Box Size | 33 (W) x 39 (D) x 38 (H)cm |
| Category | Cat6A F/UTP |
| Cable Type | F/UTP |
| Conductor | Solid-Bare Copper |
| Conductor Material | 100% bare copper cable |
| Gauge | 23AWGx4P |
| Cable Gauge | 23AWG |
| Jacket | LSZH Jacket |
| Jacket Color | TBD |
| Jacket Thickness | 0.60 ± 0.05mm |
| Insulation Material | HDPE |
| Insulation Diameter | 1.12±0.05 mm |
| Cable Diameter | 7.4 ± 0.5mm |
| Conductor Nominal OD | 0.565 up +0.005 down -0.005 |
| Frequency | 500 MHz |
| Operating Frequency | 500MHz |
| Speed | 10 Gbps |
| DC Resistance Max | ≤9.38Ω/100m |
| DC Resistance Unbalanced | in pair ≤2.0% pair to pair≤4.0% |
| DC Conductor Resistance Unbalance Max | max 5.0% |
| Unbalanced to Ground Capacitance | max 330 pf/100m |
| Mutual Capacitance at Frequency | ≤5.8nF/100m |
| Dielectric Strength Max | DC 1000V 1min No Breakdown |
| NVP | 69% |
| NVP Alternative | 74% |
| Operating Temperature | -20°C ~ + 75°C |
Package Contents
- 1 × 305M Cat6A 10G F/UTP Cable Roll
Standards & Certifications
RoHS Compliant
AS/CA S008
AS 11801 (1-6)
UL444
IEEE 802.3
CAT6 cables provide better performance with improved specifications for crosstalk and system noise. CAT6 can support 10 Gigabit Ethernet at shorter distances, while CAT5e is typically limited to 1 Gigabit Ethernet.
Yes, this cable supports PoE and PoE+ applications, suitable for IP cameras, VoIP phones, and wireless access points.
CAT6 cables can run up to 100 metres for Gigabit Ethernet. For 10 Gigabit Ethernet, the maximum recommended length is 55 metres.
