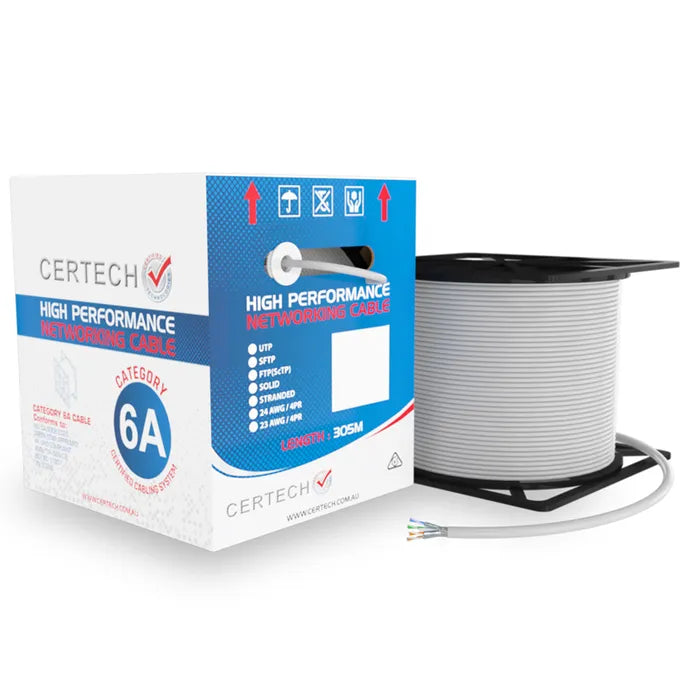

305M Cat6A 10G S/FTP Cable Roll
Secure checkout:
Store Availability
Sydney Warehouse
– In stock | Usually ready in 2 hours
1/33 Heathcote Road
,
Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description
The Cat6A S/FTP double shielded cable consists of 4 x copper conductor twisted pairs, LSZH jacket, an overall braid style shield and a foil shield on each individual pair. Designed with a strength member for improved pulling tension and drain wire for earth continuity.
| SKU | NCC6ASHLSZHGREY |
| Name | Cat6A S/FTP Cable |
| Length | 305m |
| Packaging | Reel in Box |
| Category | Cat6A S/FTP |
| Cable_Type | S/FTP |
| Conductor_Material | Bare Copper Cable |
| Gauge | 23AWG |
| Cable_Gauge | 23AWG |
| Jacket_Material | LSZH |
| Jacket_Thickness | 0.55±0.05mm |
| Insulation_Material | Skin Foam Skin PE |
| Cable_Length | 305m |
| Cable_Weight | 16.8kg/305m |
| Cable_Diameter | 0.56 |
| Operating_Frequency | 650MHz |
| DC_Resistance_Unbalanced_Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC_Resistance_Max | ≤9.38Ω/100m |
| Dielectric_Strength_Max | DC 1000V 1min No Breakdown |
| Mutual_Capacitance_at_Frequency | ≤5.8nF/100m |
| NVP | 74% |
| Flame_Test_Method | IEC60332-1-2 |
| Installation_Temperature | -20 ~ +60 degrees celsius |
| Operating_Temperature | -40 ~ +75 degrees celsius |
Package Contents
- 1 × 305M Cat6A 10G S/FTP Cable Roll
Standards & Certifications
RoHS Compliant
AS/CA S008
AS 11801 (1-6)
UL444
IEEE 802.3
