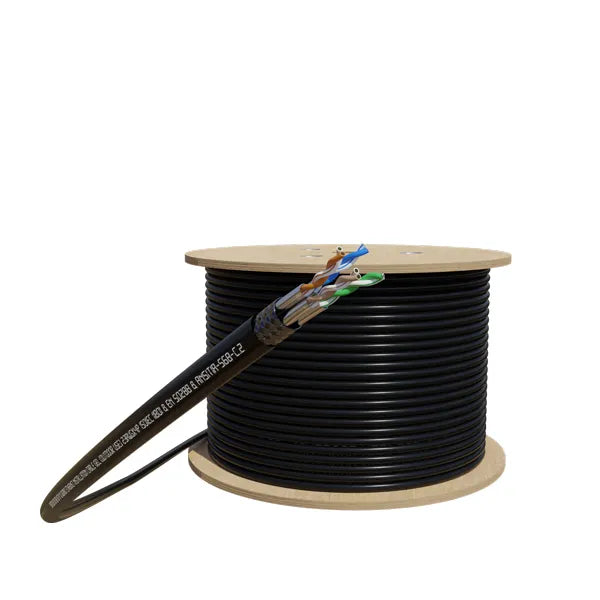

305M Cat6A 10G S/FTP Solid External Cable Roll
The CERTECH 305M Cat6A S/FTP External Cable is a 100% bare copper, shielded solid cable designed for above-ground outdoor installations. With a UV-stabilised PE jacket and 500MHz operating frequency, it delivers reliable 10 Gigabit performance in exposed environments. AS/CA S008:2010 approved and 4K UHD ready.
| 🔌 10G Cat6A | 🛡️ S/FTP Shielded | ☀️ UV Stabilised PE | ✅ AS/CA S008:2010 | 📏 305m Roll |
Specifications
| SKU | NCC6ASTPEXT |
| Cable Type | S/FTP |
| Category | Cat6A (10 Gigabit) |
| Cable Length | 305m |
| Conductor Material | 100% Bare Copper |
| Cable Gauge | 23AWG × 4 Pair |
| Conductor Diameter | 0.56mm |
| Jacket Material | UV Stabilised PE |
| Jacket Thickness | 0.55 ± 0.05mm |
| Insulation Material | Skin Foam Skin PE |
| Colour | Black |
| Operating Frequency | 500MHz |
| DC Resistance (Max.) | ≤9.38Ω/100m |
| DC Resistance Unbalance (Max.) | In pair ≤2.0%, pair to pair ≤4.0% |
| Dielectric Strength | DC 1000V / 1 min, no breakdown |
| Mutual Capacitance | ≤5.8nF/100m |
| NVP | 74% |
| Installation Temperature | -20°C to +60°C |
| Operating Temperature | -40°C to +75°C |
| Cable Weight | 14.8kg / 305m |
| Packaging | Wooden Drum |
| Compliance | AS/CA S008:2010 |
Key Features
100% Bare Copper Conductors
Solid bare copper conductors ensure consistent signal integrity and reliable performance over long runs, without the compromises of copper-clad aluminium alternatives.
S/FTP Shielding
Individual foil-shielded pairs inside an overall braided screen provide excellent protection against electromagnetic interference and alien crosstalk — critical for maintaining 10 Gigabit throughput.
UV Stabilised PE Jacket
Purpose-built for above-ground external installations, the UV-stabilised polyethylene jacket resists degradation from prolonged sun exposure and harsh weather conditions.
Wide Operating Temperature Range
Rated for operation from -40°C to +75°C, the cable handles extreme heat and cold without compromising performance — well suited to Australian outdoor conditions.
AS/CA S008:2010 Approved
Meets the Australian Communications and Media Authority’s cabling standard, ensuring compliance for commercial and residential structured cabling installations.
4K UHD Ready
With 500MHz bandwidth and 10 Gigabit capability, this cable comfortably supports 4K UHD video distribution over structured cabling infrastructure.
Home Networks
Connect computers, gaming consoles and smart TVs
Data Centres
Server connections and rack installations
Office Networks
Workstation connectivity and business infrastructure
| SKU | NCC6ASTPEXT |
| Name | Cat6A S/FTP Cable PE Jacket |
| Length | 305m |
| Packaging | Wooden Drum |
| Category | Cat6A S/FTP |
| Cable_Type | S/FTP |
| Conductor_Material | Bare Copper Cable |
| Gauge | 23AWG |
| Cable_Gauge | 23AWG |
| Jacket_Material | PE |
| Jacket_Thickness | 0.55±0.05mm |
| Insulation_Material | Skin Foam Skin PE |
| Cable_Length | 305m |
| Cable_Weight | 14.8kg/305m |
| Cable_Diameter | 0.56 |
| Operating_Frequency | 500MHz |
| DC_Resistance_Unbalanced_Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC_Resistance_Max | ≤9.38Ω/100m |
| Dielectric_Strength_Max | DC 1000V 1min No Breakdown |
| Mutual_Capacitance_at_Frequency | ≤5.8nF/100m |
| NVP | 74% |
| Flame_Test_Method | No |
| Installation_Temperature | -20 ~ +60 degrees celsius |
| Operating_Temperature | -40 ~ +75 degrees celsius |
| Shielding_Type | S/FTP (Screened Foiled Twisted Pair) |
| Individual_Pair_Shielding | Foiled |
| Overall_Shield | Screened |
| Outdoor_Rated | PE jacket suitable for outdoor use |
| Flame_Rating | No flame test - likely for outdoor/underground installation |
| Packaging_Type | Wooden drum packaging for heavy-duty applications |
Package Contents
- 1 × 305M Cat6A 10G S/FTP Solid External Cable Roll
