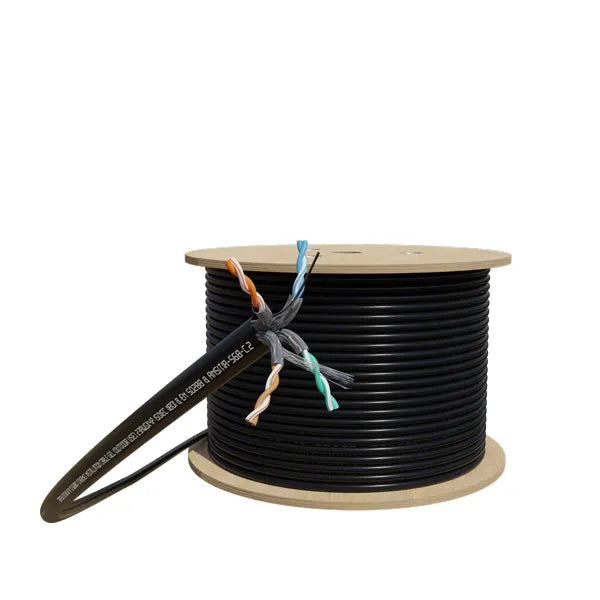

305M Cat6A 10G U/FTP External (Underground) Cable Roll
Secure checkout:
Store Availability
Sydney Warehouse– Out of stock | Available for backorder
1/33 Heathcote Road
,
Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description
305M Cat6A U/FTP external cable is a high-performance, shielded network cable designed for outdoor and underground use. The cable consists of 4 x copper conductor twisted pairs separated by a pair divider, a PE jacket and a dry core layer.
Designed with a strength member for improved pulling tension, an overall foil shield and drain wire for earth continuity. With Cat6A performance, this cable guarantees data transmission speeds of up to 10 gigabits per second (10 Gbps).
Wrapped in a PE sheath and containing a dry core layer, this cable is protected from both UV rays and the ingress of water, making it an ideal choice for challenging outdoor installations.
| SKU | NCC6ASLDGEL |
| Name | Cat6A U/FTP Cable PE Jacket |
| Length | 305m |
| Packaging | Wooden Drum |
| Category | Cat6A U/FTP |
| Cable Type | U/FTP |
| Conductor Material | Bare Copper Cable |
| Gauge | 23AWG |
| Cable Gauge | 23AWG |
| Jacket Material | PE |
| Jacket Thickness | 0.60±0.05mm |
| Insulation Material | Skin Foam Skin PE |
| Cable Length | 305m |
| Cable Weight | 15kg/305m |
| Cable Diameter | 0.56 |
| Operating Frequency | 500MHz |
| DC Resistance Unbalanced Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC Resistance Max | ≤9.38Ω/100m |
| Dielectric Strength Max | DC 1000V 1min No Breakdown |
| Mutual Capacitance at Frequency | ≤5.8nF/100m |
| NVP | 74% |
| Flame Test Method | No |
| Installation Temperature | -20 ~ +60 degrees celsius |
| Operating Temperature | -40 ~ +75 degrees celsius |
| Shielding Type | U/FTP (Unshielded/Foiled Twisted Pair) |
| Individual Pair Shielding | Foiled |
| Overall Shield | None |
| Outdoor Rated | PE jacket suitable for outdoor use |
| Flame Rating | No flame test - designed for outdoor/underground installation |
| Packaging Type | Wooden drum packaging for heavy-duty applications |
| Shielding Description | Individual foil shields around each twisted pair, no overall shield |
Package Contents
- 1 × 305M Cat6A 10G U/FTP External (Underground) Cable Roll
Standards & Certifications
RoHS Compliant
AS/CA S008
AS 11801 (1-6)
UL444
IEEE 802.3
