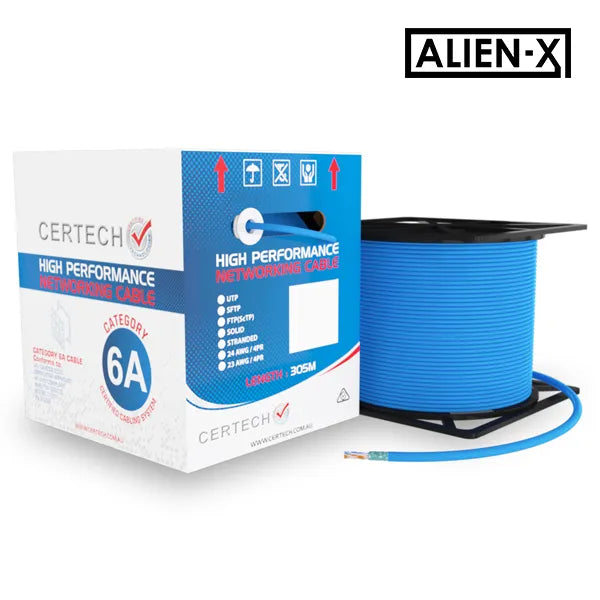

305M Cat6A 10G U/UTP Alien-X (Isolation Wrap) Cable Roll
305M Cat6A 10G U/UTP Alien-X (Isolation Wrap) Cable Roll
Hover to zoom
In Stock

305M Cat6A 10G U/UTP Alien-X (Isolation Wrap) Cable Roll

CERTECH |SKU: NCC6AAXLSZHBLUE
No reviews| Ask a question
$451.01
$410.01 ex. GST
Tax included ·Shipping calculated at checkout
Color: Blue
Secure checkout:
american_express
apple_pay
google_pay
master
paypal
shopify_pay
unionpay
visa
Store Availability
Sydney Warehouse – In stock | Usually ready in 2 hours
1/33 Heathcote Road , Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description

The Cat6A U/UTP Alien X cable with isolation wrap consists of 4 x copper conductor twisted pairs, separated by a pair separator and wrapped in a non-contiguous overall metallic isolation wrap. This isolation wrap offers increased alien cross-talk suppression and improved overall performance compared to regular UTP cables, particularly at shorter lengths. Designed with a strength member for improved pulling tension and drain wire for earth continuity.

When combined with CERTECH Cat 6A jacks and installed by a CERTECH certified installer, the permanent links exceed the performance criteria outlined in AS 11801 (1-6) and can be certified for a 25-year warranty under the CERTECH 25-year warranty program.

SKU NCC6AAXLSZHBLUE
Name Cat6A 10G U/UTP Alien-X (Isolation Wrap) High Performance Solid Cable, Blue LSZH Jacket, 305M
Length 305m
Packaging Reel in box
Box Size 33 (W) x 39 (D) x 38 (H)cm
Category Cat6A U/UTP Alien X Horizontal Cable
Cable Type U/UTP
Conductor SOLID-Bare Copper
Conductor Material Bare Copper
Gauge 23AWGx4P
Cable Gauge 23AWG
Jacket LSZH (PVC free)
Jacket Thickness 0.55±0.05 mm
Insulation Material HDPE
Insulation Diameter 1.12±0.05mm
Cable Diameter 7.2±0.5 mm
Conductor Nominal OD 0.565 up +0.005 down -0.005
Frequency 500 MHz
Speed 10 Gbps
POE Compliance Up to 100W (IEEE 802.3bt Type 4)
DC Resistance Max ≤9.38Ω/100m
DC Resistance Unbalanced in pair ≤2.0%, pair to pair≤4.0%
DC Conductor Resistance Unbalance Max max 5.0%
Delay Skew ≤45 ns/100m (1.0-500.0MHz)
NVP 69%
Operating Temperature -20°C~+75°C
Installation Temperature -20°C~+75°C

Package Contents

  • 1 × 305M Cat6A 10G U/UTP Alien-X (Isolation Wrap) Cable Roll

Standards & Certifications

RoHS Compliant RCM REACH GECA Claim Authenticated (PVC free) ANSI/TIA-568-C.2 ISO/IEC11801
Product Specification Sheet
PDF
Download
