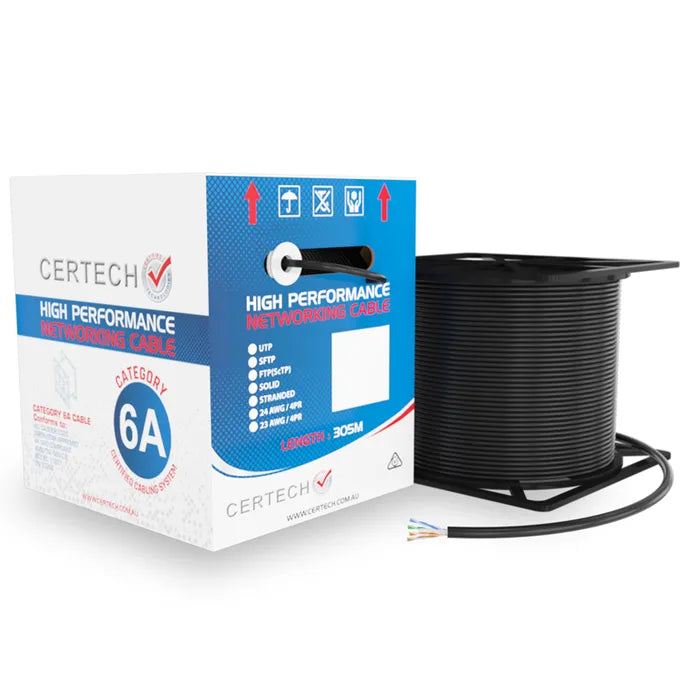

305m CAT6A 10G U/UTP LSZH Jacket Cable Roll
Secure checkout:
Store Availability
Sydney Warehouse
– In stock | Usually ready in 2 hours
1/33 Heathcote Road
,
Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description
The Cat6A U/UTP cable consists of 4 x copper conductor twisted pairs separated by a pair divider for superior AXT performance, LSZH jacket and a strength member for improved pulling tension.
Cat6A cabling solutions support data transmission speeds of up to 10 gigabits per second (10 Gbps). When combined with Cat6A jacks and installed by a CERTECH certified installer, the permanent links exceed the performance criteria outlined is AS 11801 (1-6) and certifiable through CERTECH’s 25 Year Certified Warranty Program.
Applications
Home Networks
Connect computers, gaming consoles and smart TVs
Data Centres
Server connections and rack installations
Office Networks
Workstation connectivity and business infrastructure
| SKU | NCC6ALSZHXX |
| Packaging | Reel in Box |
| Category | Cat6A U/UTP |
| Cable Type | UTP |
| Conductor | 100% Bare Copper |
| Conductor Material | Bare Copper Cable |
| Gauge | 23AWG x 4P |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Thickness | 0.70±0.05mm |
| Insulation Material | HDPE |
| Cable Diameter | 0.57 |
| Operating Frequency | 500MHz |
| Speed | 10 Gbps |
| Compatibility | Backwards Compatible |
| POE Compliance | Up to 100W (IEEE 802.3bt Type 4) |
| DC Resistance Unbalanced_Max | in pair ≤2.0%, pair to pair≤4.0% |
| DC_Resistance Max | ≤9.38Ω/100m |
| Dielectric Strength Max | DC 1000V 1min No Breakdown |
| Mutual Capacitance at Frequency | ≤5.8nF/100m |
| NVP | 69% |
| Flame Test Method | IEC60332-1-2 |
| Installation Temperature | -20 ~ +60 degrees celsius |
| Operating Temperature | -40 ~ +75 degrees celsius |
| Certifications | RoHS Compliant, GECA Authenticated (PVC Free), Australian RCM |
| Warranty | 25 Year Certified Warranty Program |
Package Contents
- 1 × 305m CAT6A 10G U/UTP LSZH Jacket Cable Roll
Standards & Certifications
RoHS Compliant
RCM
REACH
GECA Claim Authenticated (PVC free)
CAT6 cables provide better performance with improved specifications for crosstalk and system noise. CAT6 can support 10 Gigabit Ethernet at shorter distances, while CAT5e is typically limited to 1 Gigabit Ethernet.
Yes, this cable supports PoE and PoE+ applications, suitable for IP cameras, VoIP phones, and wireless access points.
CAT6 cables can run up to 100 metres for Gigabit Ethernet. For 10 Gigabit Ethernet, the maximum recommended length is 55 metres.
Product Specification Sheet
PDF
