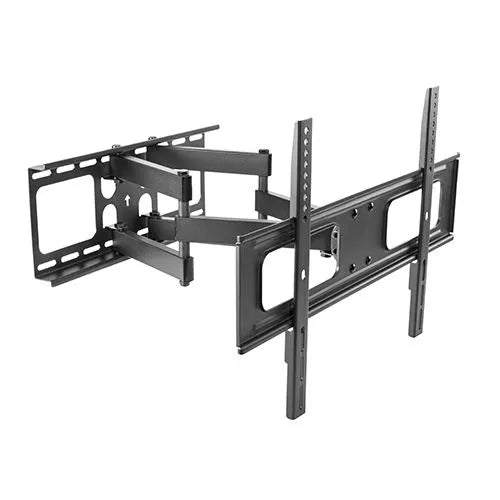

37-70" Full Motion Wall Mount Bracket
Secure checkout:
Store Availability
Sydney Warehouse
– In stock | Usually ready in 2 hours
1/33 Heathcote Road
,
Moorebank NSW 2170
Fast Delivery
Same day dispatch before 2PM
Expert Support
Technical help available
Product Description
The LCDFM3770 is a dual-arm full-motion wall mount for curved & flat panel TVs up to 70", 50kgs.
This mount extends out 510mm from wall and allows TVs to turn 60 degrees left or right. Full motion allows maximum flexibility — tilts and swivel your TV for easy viewing from any seat in a room.
Post-installation level adjustment allows the TV to “roll” up to 3 clockwise and counterclockwise to ensure it is perfectly level. Integrated cable management system keeps cables organized and protected. Wide wall plate fits for 406/450mm stud installation.
| SKU | LCDFM3770 |
| Name | Full Motion TV Wall Mount 37-70 inch |
| Material | Steel |
| Surface Finish | Powder Coating |
| Dimensions | 510x660x430 |
| Compatible TV Sizes | 37-70" |
| Weight Capacity | 50Kgs |
| Strength Tested | 4 Times Approved |
| Mounting Hole Pattern | Universal |
| VESA Compatible | 200x200, 300x300, 400x200, 400x400, 600x400 |
| Panel Type | Detachable Panel |
| Tilt Range | -20~+10 Degrees |
| Swivel Range | -60~+60 Degrees |
| Screen Level | -3~+3 Degrees |
| Profile | 64-510mm |
| Installation | Single Stud |
| Wall Type Plate | Fixed Wall Plate |
| Cable Management | Yes |
| Instruction Manual Included | Yes |
| Mount Type | Full Motion Mount |
| TV Compatibility | 37 to 70 inch TVs |
| Load Rating | 50kg maximum |
| Installation Type | Single stud mounting with full articulation |
| Tilt Functionality | 30 degrees total tilt range |
| Swivel Functionality | 120 degrees total swivel range |
| Extension Range | 64mm to 510mm from wall |
| Leveling Adjustment | ±3 degrees for screen leveling |
Package Contents
- 1 × 37-70" Full Motion Wall Mount Bracket
