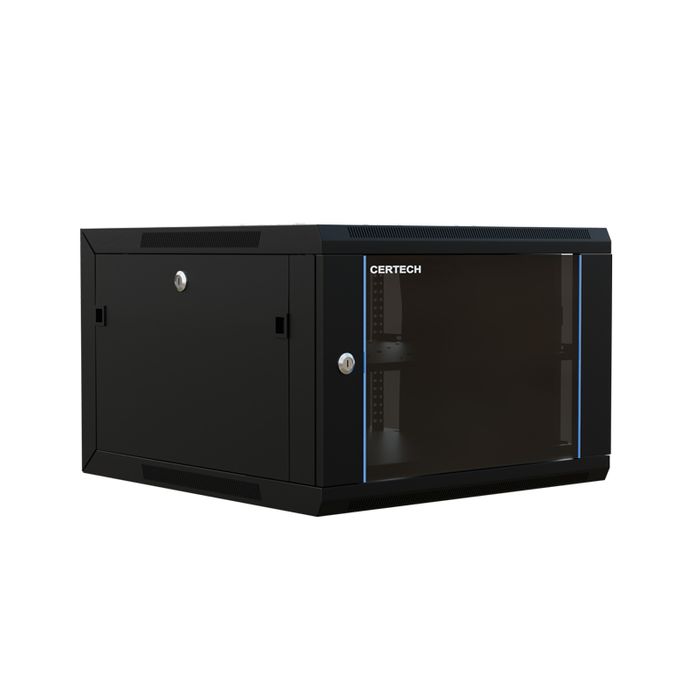

600mm Deep Wall Mount Cabinet
CERTECH Single Section Wall Mount Series racks are the perfect wall mount rack for any small home office/business installation. All racks are manufactured around universal 19” standards, providing the ability to use our racks with universal 19” equipment from other vendors & manufacturers. All racks are constructed from high quality cold rolled steel & are shipped fully assembled for quick deployment. CERTECH racks are covered by a 2-year warranty, subject to use within the static loading specifications and operation within normal environmental conditions.
• Front Door
Australian Approved toughened glass front door. Can be hinged left to right, or right to left.
• Fans
Fitted to a drop-down tray, allowing for easy access and maintenance, without having to remove any equipment inside the rack.
• Cable Entry
Large cable access glands in the roof & base of the rack, provide access for overhead & underneath run cables.
• Rack Mounting Compatibility
All racks are compatible with all EIA-310 compliant 19″ equipment.
• Vertical Mounting Rails
Vertical mounting rails can be adjusted back and forth to suit various sizes of equipment. Rack units are numbered front and back for easy equipment installation.
• Side Panels
Single piece lockable, removable side panels
• Integrated Earthing
Multiple earthing points & wires are fitted throughout the rack.
| rack_type | Single Section Wall Mount Series |
| static_loading_capacity | 60kgs |
| colour | Black (RAL 9004) powder coated paint |
| material | SPCC quality cold rolled steel, easy clean surface |
| mounting_profile_thickness | 2.0mm |
| mounting_angle_thickness | 1.5mm |
| surface_finish | Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| mounting_hole_type | Square |
| door_style | Australian approved toughened glass front door |
| side_panels | Single piece, removable |
| security | Keyed alike doors & side panels |
| assembly | Fully assembled |
| warranty_rack | 2-year warranty. Subject to use within the static loading specifications and operation within normal environmental conditions |
| warranty_fans | 1-year warranty |
| compliance | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
Package Contents
- 1 × 600mm Deep Wall Mount Cabinet
