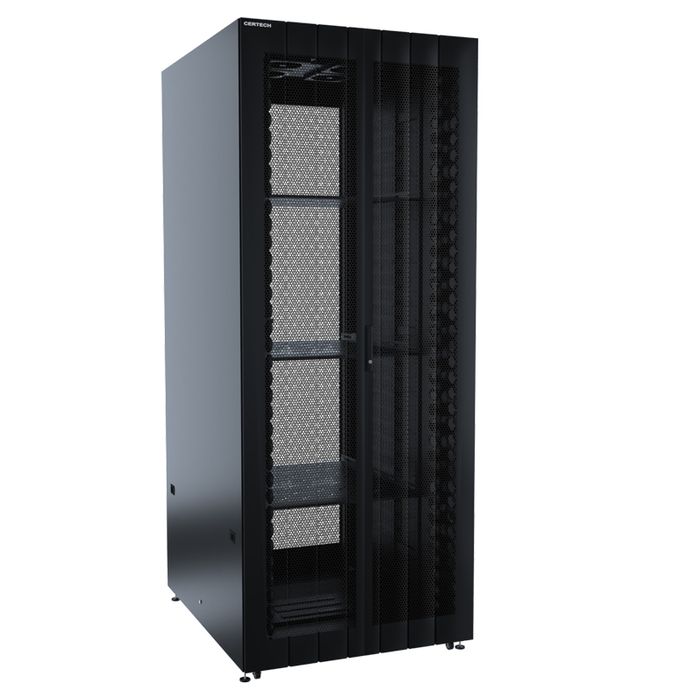

45RU 800 (W) x 1000 (D) Benchmark Series Server Rack
A high-capacity workhorse, the 45RU 800mm x 1000mm Benchmark Series Server Rack combines maximum rack unit count with deep-equipment support. With 1500kgs static load rating and the proprietary "3T" double pipe connection system, it anchors mission-critical infrastructure in enterprise data centres.
| 45RU | 800mm x 1000mm | 1500kgs | Benchmark Series | 3T System |
Specifications
| Series | NSR Benchmark Series - 800mm Wide |
| Width | 800mm |
| Depth | 1000mm |
| Height | 2185mm |
| Static Loading Capacity | 1500kgs |
| Material | SPCC quality cold rolled steel, gloss black colour, easy clean surface |
| Colour | Black (RAL 9004) powder coated paint |
| Mounting Profile Thickness | 2.0mm |
| Mounting Angle Thickness | 1.5mm |
| Mounting Hole Type | Square |
| Surface Finish | Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| Door Style | Bi-fold front & rear perforated steel, honeycomb style |
| Side Panels | Single piece, removable |
| Cable Management | Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays |
| Inclusions | 4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet |
| Security | Keyed alike doors & side panels |
| Assembly | Supplied complete. Double pipe profile frame connected by "3T" system |
| Compliance | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
Key Features
Enterprise-Grade "3T" Connection System
Double pipe profile frame connected by the proprietary "3T" system delivers superior structural rigidity and load distribution compared to standard single-profile designs.
Heavy-Duty 1,500kg Load Capacity
Rated for 1,500kg static load — 50% more than standard racks — supporting the heaviest enterprise servers, UPS systems, and networking equipment.
Optimised Airflow Design
Bi-fold front and rear perforated steel doors with honeycomb pattern promote consistent airflow across high-density equipment, helping prevent thermal hotspots.
Integrated Cable Management
Dual 100mm front vertical cable management ducts with magnetic-close protective covers and two 300mm-wide vertical cable trays keep cabling organised and accessible.
Complete Security
Keyed-alike locks on all doors and side panels provide uniform access control, while single-piece removable side panels simplify maintenance.
Comprehensive Inclusions
Ships complete with 4 fans, 3 shelves, 25 cage nuts, a horizontal 6-outlet PDU, and 4 castor wheels with levelling feet — fully ready to deploy.
International Compliance
Certified to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, and GB/T3047.2-92 standards.
