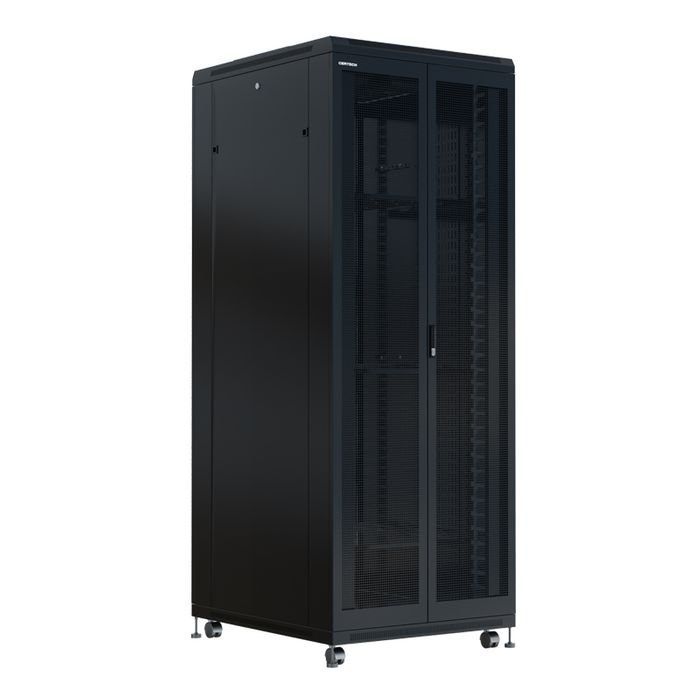

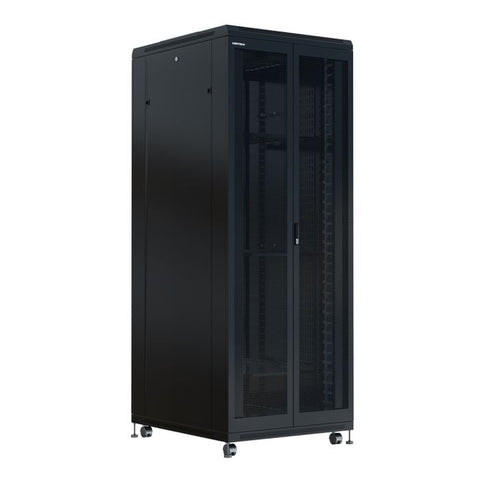

45RU 800 (W) x 1200 (D) Premier Series Server Rack
The largest in the Premier Series lineup, the 45RU 800mm x 1200mm Server Rack delivers uncompromising capacity for the most demanding data centre environments. With 1200mm of depth and a 1,000kg static load rating, this SPCC steel enclosure accommodates the deepest server chassis, extensive cable management, and rear-mounted accessories.
| 45RU | 800mm x 1200mm | 1,000kg | Premier Series | Assembled |
Specifications
| Rack Units | 45RU |
| Width | 800mm |
| Depth | 1200mm |
| Height | 2210mm |
| Static Loading Capacity | 1,000kg |
| Material | SPCC quality cold rolled steel, gloss black colour, easy clean surface |
| Colour | Black (RAL 9004) powder coated paint |
| Front Door | Bi-fold front & rear perforated steel, honeycomb style |
| Door Style | Bi-fold front & rear perforated steel, honeycomb style |
| Side Panels | Single piece, lockable & removable |
| Mounting Profile Thickness | 2.0mm |
| Mounting Angle Thickness | 1.5mm |
| Mounting Hole Type | Square |
| Surface Finish | Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| Cable Management | Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays |
| Inclusions | 4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet |
| Security | Keyed alike doors & side panels |
| Assembly | Supplied complete |
| Compliance | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
Key Features
Heavy-Duty SPCC Steel Construction
Built from SPCC cold-rolled steel with 2.0mm mounting profiles and 1.5mm mounting angles, providing a rigid and durable frame rated for 1,000kg static load.
Optimised Airflow Design
Bi-fold front and rear perforated steel doors with honeycomb pattern promote consistent airflow across rack-mounted equipment, helping prevent hotspots in enclosed environments.
Integrated Cable Management
Dual 100mm front vertical cable management ducts with magnetic-close protective covers and two 300mm-wide vertical cable trays keep cabling organised and accessible.
Complete Security
Keyed-alike locks on all doors and side panels provide uniform access control, while single-piece removable side panels simplify maintenance.
Comprehensive Inclusions
Ships with fans, shelves, 25 cage nuts, a horizontal 6-outlet PDU, and 4 castor wheels with levelling feet — ready to deploy out of the box.
International Compliance
Certified to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, and GB/T3047.2-92 standards.
