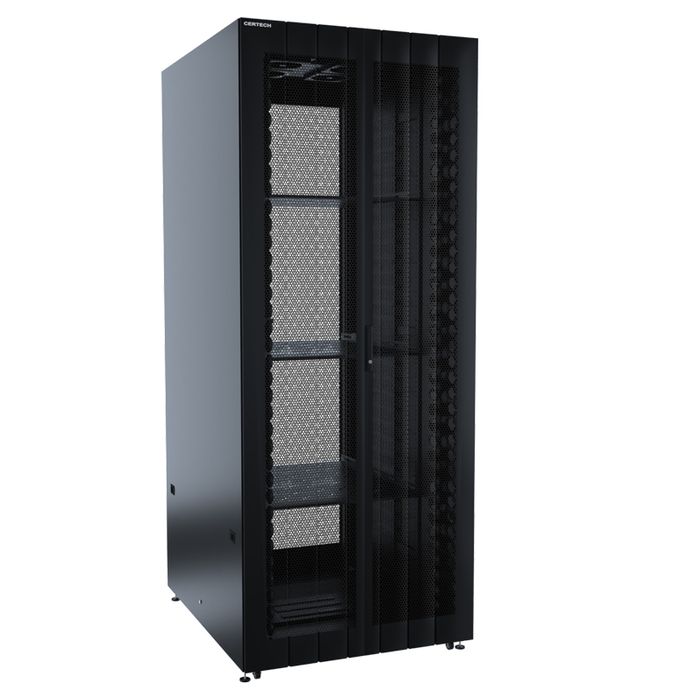

45RU 800 (W) x 900 (D) Benchmark Series Server Rack
Offering a versatile 900mm depth, the 45RU Benchmark Series Server Rack provides additional rear clearance for cable management and deeper equipment. The 1500kgs static load capacity and "3T" double pipe profile frame ensure rock-solid stability for fully loaded enterprise installations.
| 45RU | 800mm x 900mm | 1500kgs | Benchmark Series | 3T System |
Specifications
| Series | NSR Benchmark Series - 800mm Wide |
| Width | 800mm |
| Depth | 900mm |
| Height | 2185mm |
| Static Loading Capacity | 1500kgs |
| Material | SPCC quality cold rolled steel, gloss black colour, easy clean surface |
| Colour | Black (RAL 9004) powder coated paint |
| Mounting Profile Thickness | 2.0mm |
| Mounting Angle Thickness | 1.5mm |
| Mounting Hole Type | Square |
| Surface Finish | Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| Door Style | Bi-fold front & rear perforated steel, honeycomb style |
| Side Panels | Single piece, removable |
| Cable Management | Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays |
| Inclusions | 4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet |
| Security | Keyed alike doors & side panels |
| Assembly | Supplied complete. Double pipe profile frame connected by "3T" system |
| Compliance | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
Key Features
Enterprise-Grade "3T" Connection System
Double pipe profile frame connected by the proprietary "3T" system delivers superior structural rigidity and load distribution compared to standard single-profile designs.
Heavy-Duty 1,500kg Load Capacity
Rated for 1,500kg static load — 50% more than standard racks — supporting the heaviest enterprise servers, UPS systems, and networking equipment.
Optimised Airflow Design
Bi-fold front and rear perforated steel doors with honeycomb pattern promote consistent airflow across high-density equipment, helping prevent thermal hotspots.
Integrated Cable Management
Dual 100mm front vertical cable management ducts with magnetic-close protective covers and two 300mm-wide vertical cable trays keep cabling organised and accessible.
Complete Security
Keyed-alike locks on all doors and side panels provide uniform access control, while single-piece removable side panels simplify maintenance.
Comprehensive Inclusions
Ships complete with 4 fans, 3 shelves, 25 cage nuts, a horizontal 6-outlet PDU, and 4 castor wheels with levelling feet — fully ready to deploy.
International Compliance
Certified to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, and GB/T3047.2-92 standards.
