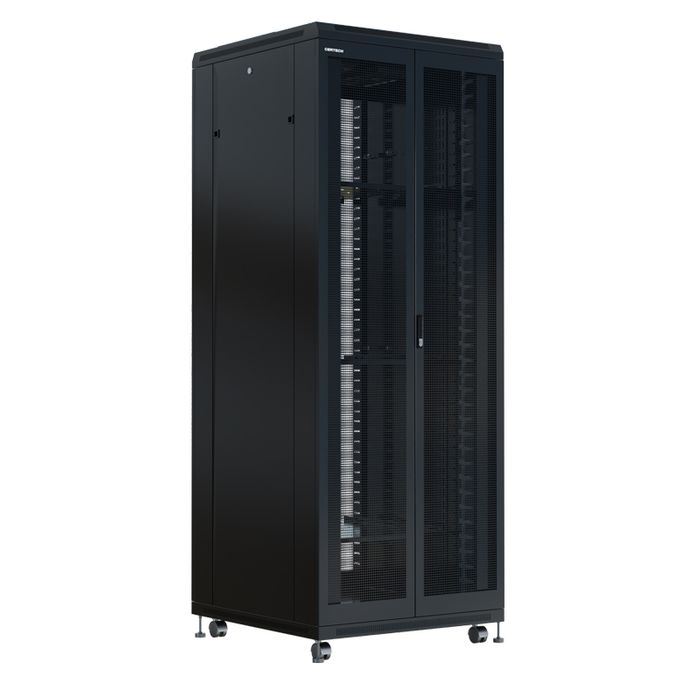

45RU 800 (W) x 900 (D) Premier Series Server Rack
The 45RU 800mm x 900mm Premier Series Server Rack combines extended height with moderate depth for versatile IT and telecom installations. At 1,000kg static load capacity, the SPCC steel frame handles fully loaded configurations of switches, servers, and patch panels with room to spare.
| 45RU | 800mm x 900mm | 1,000kg | Premier Series | Assembled |
Specifications
| Rack Units | 45RU |
| Width | 800mm |
| Depth | 900mm |
| Height | 2210mm |
| Static Loading Capacity | 1,000kg |
| Material | SPCC quality cold rolled steel, gloss black colour, easy clean surface |
| Colour | Black (RAL 9004) powder coated paint |
| Front Door | Bi-fold front & rear perforated steel, honeycomb style |
| Door Style | Bi-fold front & rear perforated steel, honeycomb style |
| Side Panels | Single piece, lockable & removable |
| Mounting Profile Thickness | 2.0mm |
| Mounting Angle Thickness | 1.5mm |
| Mounting Hole Type | Square |
| Surface Finish | Degrease, acid pickling, rust prevention and parkerizing, pure water cleaning, static electricity plastic painting |
| Cable Management | Dual 100mm front vertical cable management ducts, with magnetic close protective cover & 2 x 300mm wide vertical cable trays |
| Inclusions | 4 x fans, 3 x shelves, 25 x cage nuts, 1 x horizontal 6 outlet PDU, 4 x castor wheels & levelling feet |
| Security | Keyed alike doors & side panels |
| Assembly | Supplied complete |
| Compliance | IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, GB/T3047.2-92 |
Key Features
Heavy-Duty SPCC Steel Construction
Built from SPCC cold-rolled steel with 2.0mm mounting profiles and 1.5mm mounting angles, providing a rigid and durable frame rated for 1,000kg static load.
Optimised Airflow Design
Bi-fold front and rear perforated steel doors with honeycomb pattern promote consistent airflow across rack-mounted equipment, helping prevent hotspots in enclosed environments.
Integrated Cable Management
Dual 100mm front vertical cable management ducts with magnetic-close protective covers and two 300mm-wide vertical cable trays keep cabling organised and accessible.
Complete Security
Keyed-alike locks on all doors and side panels provide uniform access control, while single-piece removable side panels simplify maintenance.
Comprehensive Inclusions
Ships with fans, shelves, 25 cage nuts, a horizontal 6-outlet PDU, and 4 castor wheels with levelling feet — ready to deploy out of the box.
International Compliance
Certified to IEC-60297, ANSI/EIA RS-310-D, IEC297-2, DIN41491-1, DIN41494-7, and GB/T3047.2-92 standards.
