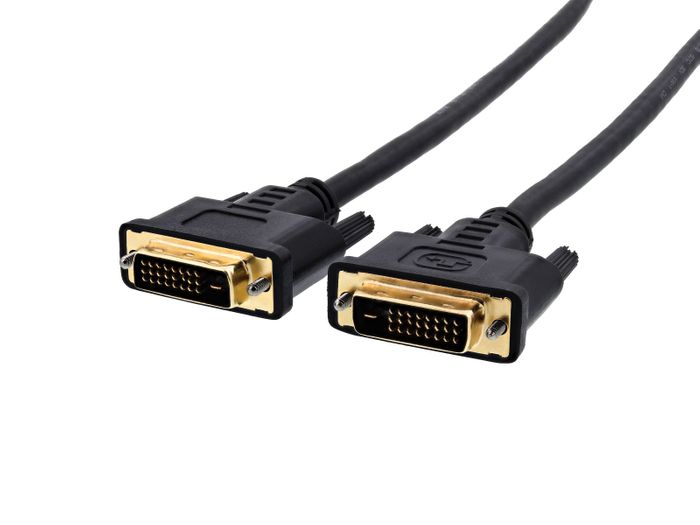

5m DVI-D Male to DVI-D Male Digital Dual Link (24+1) Cable
The CERTECH 5m DVI-D Male to Male Digital Dual Link (24+1) Cable connects computers and laptops to any device with a DVI port, including monitors, projectors, and TVs. With gold-plated connectors and high-purity electrolytic copper terminals, this cable delivers reliable dual link performance up to 2560 × 1600 (WQXGA) @ 60Hz. Plug and play — no drivers required.
| 🖥️ Dual Link WQXGA |
🔌 Gold Plated Connectors
|
📏 0.5m Length | ⚡ Plug & Play |
Specifications
| SKU | CDVIDMM0.5 |
| Cable Length | 5 m |
| Connector Type | DVI-D Male to DVI-D Male — Dual Link (24+1) |
| Max Resolution | 2560 × 1600 (WQXGA) @ 60 Hz |
| Max Data Rate | 9.90 Gbit/s @ 165 MHz (7.92 Gbit/s effective) |
| Wire Gauge | 28 AWG |
| Conductor Material | High-purity electrolytic copper |
| Insulation | Polypropylene |
| Connector Finish | Gold plated |
| Installation | Plug & play — no drivers required |
Key Features
Dual Link Performance
Dual link delivers twice the data rate of single link, supporting resolutions up to 2560 × 1600 (WQXGA) at 60 Hz with a maximum throughput of 9.90 Gbit/s.
Gold Plated Connectors
Gold-plated DVI-D (24+1) connectors on both ends ensure optimal conductivity and a reliable, corrosion-resistant connection.
High-Quality Copper Construction
28 AWG copper wires with polypropylene insulation reduce crosstalk and ensure high-speed performance without transmission errors. Contact terminals use high-purity electrolytic copper.
Plug & Play
Simply connect and go — no drivers or software required.
