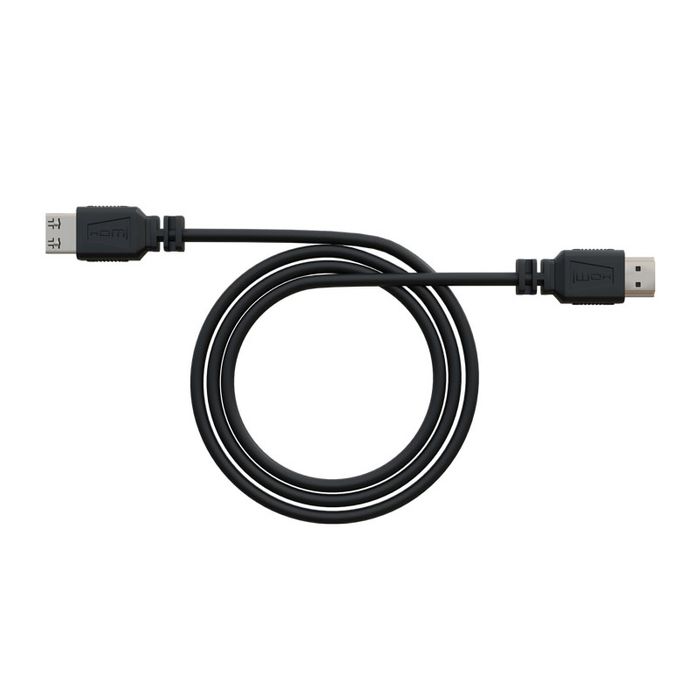

5m HDMI 4K@60Hz High Speed Bend & Lock Cable, with Ethernet.
The CERTECH 5M HDMI High Speed Bend & Lock Cable delivers 4K@60Hz (4:4:4) video at 18 Gbps with built-in Ethernet, ARC, and 3D support over a secure locking connection. Featuring 10/12-bit colour depth, 32 audio channels at up to 1536kHz, and CEC 2.0 control, it’s built for AV installations where both performance and cable retention matter.
| 📺 4K@60Hz (4:4:4) | ⚡ 18 Gbps | 🔒 Bend & Lock Connector | 🔊 32 Audio Channels | 📏 5m Length |
Specifications
| SKU | CHDMIBL5 |
| Cable Length | 5m |
| Cable Type | HDMI High Speed Bend & Lock with Ethernet |
| Resolution | 2160p 4K@60Hz (4:4:4) |
| Bandwidth | 18 Gbps |
| Colour Depth | 10/12-bit |
| Audio Channels | 32 |
| Audio Sample Frequency | Up to 1536kHz |
| Wire Gauge | 28AWG |
| CEC Support | CEC 2.0 |
| ARC | Yes |
| 3D Support | Yes |
| Aspect Ratio Support | Up to 21:9 (wide angle theatrical) |
| Connector | Bend & Lock HDMI |
Key Features
Bend & Lock Connector
The locking HDMI connector prevents accidental disconnection, making it ideal for wall-mounted displays, commercial AV installations, and any environment where cable security is important.
4K@60Hz (4:4:4) with 18 Gbps Bandwidth
Supports full 2160p at 60Hz with 4:4:4 chroma subsampling and 10/12-bit colour depth, delivering sharp text rendering, accurate colour reproduction, and rich HDR visuals.
32-Channel High-Fidelity Audio
Carries up to 32 audio channels at sample frequencies up to 1536kHz, with simultaneous multi-stream audio delivery to multiple users for the highest audio fidelity.
Audio Return Channel (ARC)
Built-in ARC support sends audio back from the display to an AV receiver or soundbar over the same HDMI cable, reducing cable clutter in your installation.
Dual Video Streams & 21:9 Aspect Ratio
Supports simultaneous delivery of dual video streams to multiple users on the same screen, along with the wide-angle theatrical 21:9 aspect ratio for cinematic content.
CEC 2.0 Control
Extended CEC 2.0 commands allow expanded control of connected consumer electronics devices through a single control point, simplifying system management across multiple devices.
