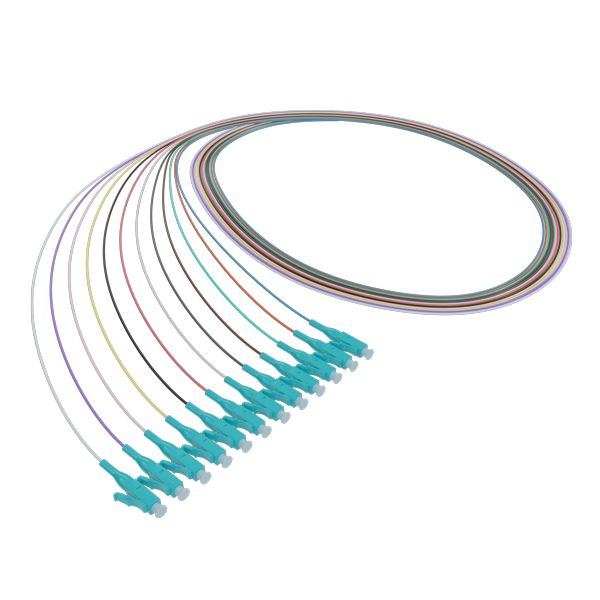

Fibre Pigtails, LC OM4, 2m Length - 12 Pack
The CERTECH Fibre Pigtails, LC OM4, 2m Length - 12 Pack. Pre-terminated fibre optic cables with LC connectors at one end and bare, unterminated fibre on the other — designed for splicing into existing optical cables within high-speed fibre optic networks.
| 🔵 OM4 Multimode | 📦 12 Pack | 📏 2m Length | 🇦🇺 Australian Standards |
Specifications
| Stock Code | FPTLCOM412 |
| Connector Type | LC |
| Fibre Type | OM4 Multimode |
| Fibre Count | 1F (Single Fibre) |
| Cable Length | 2 metres |
| Pack Quantity | 12 pigtails per pack |
| Tight Buffer Diameter | 0.9 ± 0.05mm |
| Core Diameter | 50 ± 2.5 µm |
| Cladding Diameter | 125 ± 2 µm |
| Cable Weight | ≤ 0.85 kg/km |
| Min. Bending Radius | 30mm |
| Installation Temp. | -10°C to +60°C |
| Operating Temp. | -20°C to +70°C |
| Tensile Strength | Max 15 N |
| Crush Load (Long Term) | 50 N/100mm |
| Crush Load (Short Term) | 80 N/100mm |
| Attenuation @ 850nm | < 0.3 dB/km |
| Attenuation @ 1300nm | 1.5 dB/km |
| OFL Bandwidth @ 850nm | ≥ 3500 MHz·km |
| OFL Bandwidth @ 1300nm | ≥ 500 MHz·km |
| Effective Modal Bandwidth @ 850nm | ≥ 4700 MHz·km |
| 10G Ethernet SX Distance | 550m |
| Colour Coding | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua (TIA-598C) |
| Brand | CERTECH |
Key Features
OM4 Multimode — High Bandwidth Performance
With an effective modal bandwidth of ≥4700 MHz·km at 850nm and support for 10G Ethernet SX up to 550m, these pigtails are engineered for demanding high-speed network environments.
Low Dispersion & Low Attenuation
Attenuation of less than 0.3 dB/km at 850nm ensures minimal signal loss, supporting reliable multi-channel high-speed data transmission across the network.
Colour Coded — TIA-598C Compliant
Each pigtail is colour coded per TIA-598C across 12 distinct colours, enabling fast and error-free fibre identification and management in dense installations.
Convenient 12-Pack Format
Supplied as a 12-pack to streamline installation in patch panels and fibre enclosures, reducing project cost and handling time.
Built to Australian Standards
Designed and manufactured to AS/NZS ISO/IEC 14763.3, IEC 61280-4-1, ISO/IEC 11801, and TIA/EIA 455 — compliant for use in Australian commercial and enterprise deployments.
Applications
Commonly used in data centres, telecommunications networks, and high-speed optical communication systems requiring reliable fibre termination and splicing solutions.
