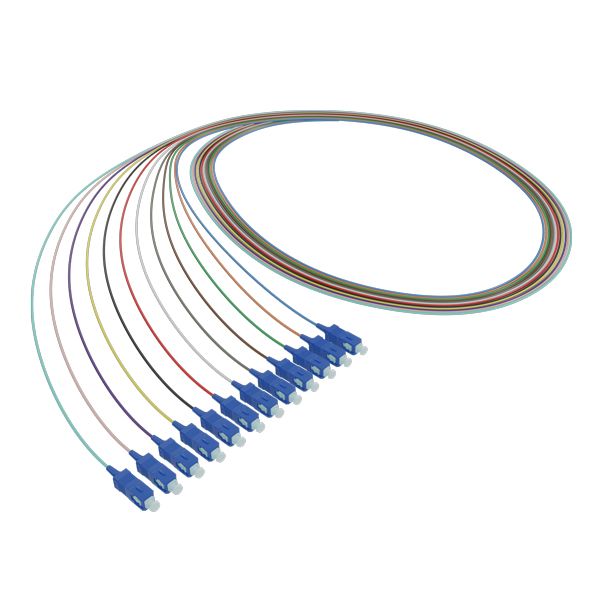

Fibre Pigtails, SC OS2, 2m Length - 12 Pack
The CERTECH Fibre Pigtails, SC OS2, 2m Length - 12 Pack. The ultimate solution for high-performance single-mode fibre optic connections — designed for reliable and efficient fibre termination in data centres, telecommunications networks, and other critical optical networking environments.
| 🟡 OS2 Singlemode | 📦 12 Pack | 📏 2m Length | 🇦🇺 Australian Standards |
Specifications
| Connector Type | SC |
| Fibre Type | OS2 Singlemode (G.652D) |
| Fibre Count | 1F (Single Fibre) |
| Cable Length | 2 metres |
| Pack Quantity | 12 pigtails per pack |
| Tight Buffer Diameter | 0.9 ± 0.05mm |
| Cladding Diameter | 124.8 ± 0.7 µm |
| Cladding Non-Circularity | ≤ 0.7% |
| Core-Cladding Concentricity Error | ≤ 0.5 µm |
| Coating-Cladding Concentricity Error | ≤ 12.0 µm |
| Cable Weight | ≤ 0.85 kg/km |
| Min. Bending Radius | 30mm |
| Installation Temp. | -10°C to +60°C |
| Operating Temp. | -20°C to +70°C |
| Tensile Strength | Max 15 N |
| Crush Load (Long Term) | 50 N/100mm |
| Crush Load (Short Term) | 80 N/100mm |
| Attenuation @ 1310nm | 0.36 dB/km |
| Attenuation @ 1550nm | 0.22 dB/km |
| Wavelength Attenuation Change (1282–1330nm) | ≤ 0.03 dB/km |
| Wavelength Attenuation Change (1525–1575nm) | ≤ 0.02 dB/km |
| Dispersion @ 1550nm | ≤ 18 ps/(nm·km) |
| Dispersion @ 1625nm | ≤ 22 ps/(nm·km) |
| Zero-Dispersion Wavelength | 1312 ± 10 nm |
| Zero-Dispersion Slope | ≤ 0.092 ps/(nm²·km) |
| Colour Coding | Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua (TIA-598C) |
| Brand | CERTECH |
Key Features
OS2 Singlemode — Ultra-Low Loss over Long Distances
G.652D singlemode fibre delivers attenuation as low as 0.22 dB/km at 1550nm, making these pigtails ideal for long-haul and high-bandwidth applications where signal integrity over extended distances is critical.
Low Dispersion
With a zero-dispersion wavelength of 1312 ± 10nm and a slope of ≤ 0.092 ps/(nm²·km), these pigtails maintain signal quality across a wide transmission window, supporting demanding WDM and high-speed applications.
SC Connector — Robust Push-Pull Design
The SC (Subscriber Connector) features a secure snap-in push-pull mechanism, making it ideal for installations where reliable, low-loss connections and easy handling are priorities.
Colour Coded — TIA-598C Compliant
Each pigtail is colour coded per TIA-598C across 12 distinct colours, enabling fast and error-free fibre identification and management in dense installations.
Convenient 12-Pack Format
Supplied as a 12-pack to streamline installation in patch panels and fibre enclosures, reducing project cost and handling time.
Built to Australian Standards
Designed and manufactured to AS/NZS ISO/IEC 14763.3, IEC 61280-4-1, and TIA/EIA 455 — compliant for use in Australian commercial and enterprise deployments.
Applications
Commonly used in data centres, telecommunications networks, and high-speed optical communication systems requiring reliable single-mode fibre termination and splicing solutions.
