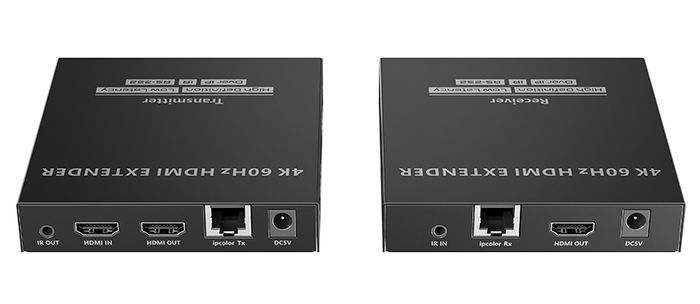

HDMI Extender over Cat6 to 100m, 4K@60Hz, Low Latency
The HDMI Extender over Cat6 delivers 4K@60Hz video up to 120 metres over Cat6/6A/7 cabling using ipcolour STREAM technology for low-latency (70–180ms) transmission at 18 Gbps. Supporting one-to-one, one-to-many (via gigabit switch), and switch cascading topologies, it also includes HDMI loop-out, IR passback, and RS-232 passthrough. The kit includes both a transmitter and receiver in compact iron housings with built-in lightning, surge, and ESD protection.
| 📺 4K@60Hz | 📏 Up to 120m over Cat6 | ⚡ 70–180ms Latency | 🔗 1-to-1 or 1-to-Many | 🛡️ ESD & Surge Protected |
Specifications
| SKU | HDMIEXT100PRO |
| Product Type | HDMI Extender (TX & RX Kit) |
| Compatibility | HDMI 2.0 / HDCP 1.4 / HDCP 2.2 |
| Maximum Transfer Rate | 18 Gbps |
| Supported Resolutions | 3840×2160@24/30/50/60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920×1200@60Hz, 2560×1440@60Hz, 2560×1600@60Hz |
| Transmission Distance | ≤120m over Cat6/6A/7 |
| Transmission Latency | 70–180ms |
| HDMI Input Cable Length | ≤5m |
| Connection Types | One-to-one, one-to-many (via gigabit switch), switch cascading |
| HDMI Loop-Out | Yes (on transmitter) |
| IR Passback | 20–60kHz (receiving range ≤5m) |
| RS-232 (GND/RXD/TXD) | Default 115200 baud; supported: 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Power Supply | DC 5V/1A |
| Power Consumption | TX ≤4.5W, RX ≤2.5W |
| ESD Protection | Contact discharge level 2 (±4KV) / Air discharge level 3 (±8KV) – IEC61000-4-2, lightning & surge protection |
| Housing | Iron |
| Dimensions (L × W × H) | 106.0mm × 103.0mm × 20.6mm |
| Weight | TX: 254g, RX: 242g |
| Colour | Black |
| Working Temperature | -20–60°C |
| Storage Temperature | 30–70°C |
| Humidity | 0–90% RH (non-condensing) |
| Kit Contents | 1 × Transmitter (TX), 1 × Receiver (RX) |
Key Features
4K@60Hz over 120 Metres
Extends full 3840×2160@60Hz HDMI signal up to 120 metres over Cat6/6A/7 cabling using ipcolour STREAM technology, with low latency of just 70–180ms for smooth, high-definition output.
Flexible Connection Topologies
Supports one-to-one point-to-point connections, one-to-many distribution via a gigabit network switch, and switch cascading for large-scale deployments — all from a single transmitter unit.
HDMI Loop-Out for Local Display
The transmitter includes a dedicated HDMI loop-out port for connecting a local monitor at the source end, enabling preview or confidence monitoring without consuming a receiver output.
IR Passback (20–60kHz)
Supports infrared passthrough for standard 20–60kHz IR devices with a receiving range of up to 5 metres, allowing remote control of the source device from the display location.
RS-232 Control Passthrough
Built-in RS-232 serial passthrough (GND/RXD/TXD) supports baud rates from 2400 to 115200, enabling integration with third-party control systems such as Crestron, Extron, or AMX for automated AV management.
Lightning, Surge & ESD Protection
Built-in protection to IEC61000-4-2 with contact discharge level 2 (±4KV) and air discharge level 3 (±8KV), plus lightning and surge protection, safeguarding your equipment in demanding installation environments.
