HDMI Extender over Cat6 to 120 Metres, 1080p
The HDMI Extender over Cat6 kit extends full HD 1080p HDMI signals up to 120 metres over a single Cat6 cable, eliminating image degradation, colour distortion, and transmission failures common with long copper HDMI runs. The kit includes both a transmitter and receiver, and supports HDMI distribution — connect one transmitter to multiple receivers for a combined extender and splitter solution.
| 📺 Full HD 1080p | 📏 Up to 120m over Cat6 | 📦 TX & RX Included | 🔗 1-to-Many Distribution |
Specifications
| SKU | HDMIEXT120 |
| Maximum Resolution | 1080p |
| Maximum Distance | 120m over Cat6 |
| Kit Contents | 1 × Transmitter, 1 × Receiver |
| Distribution | 1 transmitter to multiple receivers |
| Deep Colour | Yes |
| Lip Sync | Yes |
| CEC | Yes |
Key Features
120-Metre HDMI Extension over Cat6
Transmits a full HD 1080p HDMI signal up to 120 metres over standard Cat6 cabling, solving the signal loss, colour distortion, and image artefacts that occur when running HDMI over long distances with passive copper cables.
Combined Extender & Splitter
Supports one-to-many HDMI distribution — connect a single transmitter to multiple receivers to feed the same source to several displays, ideal for digital signage, retail, hospitality, and multi-room setups.
Full HDMI Feature Support
Supports the full HDMI specification including 1080p, deep colour, lip sync, and CEC, ensuring reliable compatibility with a wide range of sources and displays.

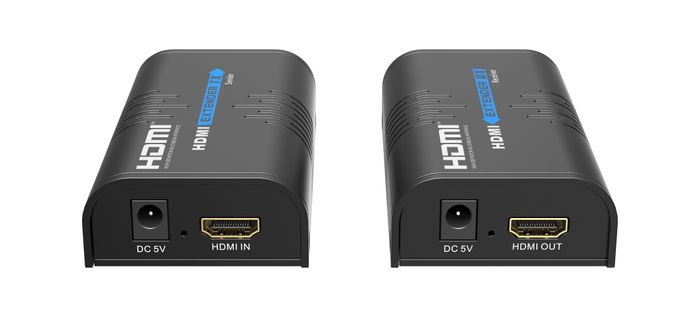

Complete Kit — Transmitter & Receiver Included
Ships with both the transmitter and receiver units, so all you need is a Cat6 cable run between your source and display to get up and running.
