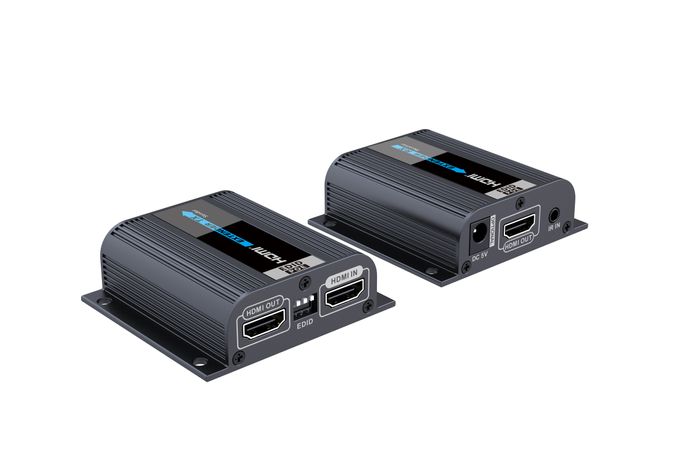

HDMI Extender w/ EDID Function over Cat6 to 40 Metres, 1080p
The HDMI Extender with EDID Function transmits uncompressed full HD 1080p@60Hz HDMI signal up to 40 metres over a single Cat6/6A cable. Featuring integrated EDID DIP switch management, Power over Ethernet (only one power source needed at the transmitter), IR passback, and an HDMI loop-out for a local display, it’s a complete plug-and-play solution. The kit includes both a transmitter and receiver.
| 📺 1080p@60Hz | 📏 Up to 40m over Cat6 | 🔧 EDID Management | ⚡ PoE – Single Power Source | 📦 TX & RX Included |
Specifications
| SKU | HDMIEXT40-EDID |
| Product Type | HDMI Extender with EDID Function |
| Maximum Resolution | 1080p@60Hz |
| Maximum Distance | 40m over Cat6/6A |
| Compatible Cable | Cat6 / Cat6A |
| EDID Management | Integrated DIP switch |
| Power over Ethernet (PoE) | Yes – receiver powered from transmitter over Cat6 |
| HDMI Loop-Out | 1 × on transmitter (local display) |
| IR Passback | 20–60kHz |
| Kit Contents | 1 × Transmitter (TX), 1 × Receiver (RX) |
Key Features
EDID DIP Switch Management
An integrated EDID DIP switch allows manual adjustment and fine-tuning of communication between connected devices, resolving compatibility issues across different display types and cable distances without software or additional tools.
Power over Ethernet
Only the transmitter requires a power connection — the receiver draws power over the Cat6 cable, eliminating the need for a power outlet at the remote display location. Ideal for extending signal to areas where power access is limited.
Lossless 1080p@60Hz Transmission
Extends uncompressed full HD 1080p@60Hz HDMI signal up to 40 metres with synchronous output, delivering picture quality as fluent as a direct connection with no visible degradation.
HDMI Loop-Out for Local Display
A dedicated HDMI loop-out on the transmitter lets you connect a local monitor at the source end for preview or confidence monitoring without affecting the remote display output.
IR Signal Passback (20–60kHz)
Supports infrared passthrough for standard 20–60kHz IR devices, allowing remote control of the HDMI source device from the receiver location.
