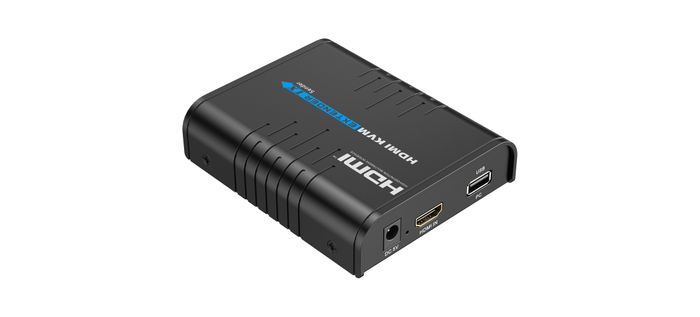

HDMI Extender w/ KVM Function over Cat6 to 120m, 1080p
The HDMI Extender with KVM Function transmits a 1080p HDMI signal up to 120 metres over a single Cat6 Ethernet cable, while also providing remote keyboard and mouse control of the source device via built-in KVM functionality. Housed in a durable aluminium alloy enclosure, it’s ideal for command centres, data control rooms, operations rooms, and any environment where the source equipment needs to be located away from the operator.
| 📺 1080p@60Hz | 📏 Up to 120m over Cat6 | 🖱️ KVM Function | 📦 TX & RX Included |
Specifications
| SKU | HDMIKVMEXT120 |
| Product Type | HDMI Extender with KVM Function |
| Maximum Resolution | 1920 × 1080@60Hz |
| Maximum Distance | 120m over Cat6 |
| HDMI Version | HDMI 1.3 |
| HDCP Version | HDCP 1.2 |
| Video Bandwidth | <70 Mbps |
| Supported Audio | PCM (44.1kHz, 48kHz) |
| LAN Specification | 802.3 |
| Compatible Cable | UTP & STP Cat6 |
| Power Supply | 2 × 5V/1A |
| Power Consumption | TX <3.5W, RX <3.5W |
| Dimensions (Each Unit) | 109.6mm (L) × 89.5mm (W) × 26.3mm (H) |
| Weight (Each Unit) | 240g |
| Housing | Aluminium Alloy |
| Colour | Black |
| Operating Temperature | 0–50°C |
| Relative Humidity | 10–95% (non-condensing) |
| Kit Contents | 1 × Transmitter, 1 × Receiver |
Key Features
KVM Remote Access
Extends keyboard and mouse control alongside the HDMI video signal, allowing full operation of the source device from the remote display location — perfect for command centres, server rooms, and operations rooms where the source equipment is locked away or in a different area.
120-Metre Extension over Cat6
Transmits 1080p@60Hz video and USB control signals up to 120 metres over a single Cat6 cable, supporting both UTP and STP cable types for flexible installation.
LED Status Indicators
Built-in LEDs on both units confirm power and USB connection status at a glance, making it easy to verify the link is active and troubleshoot if needed.
Aluminium Alloy Housing
Both the transmitter and receiver are housed in compact aluminium alloy enclosures, providing durability, effective heat dissipation, and a professional finish at just 240g per unit.
LAN 802.3 Compatible
Supports the LAN 802.3 specification, allowing the extender to work within existing structured cabling infrastructure without requiring dedicated cable runs.
