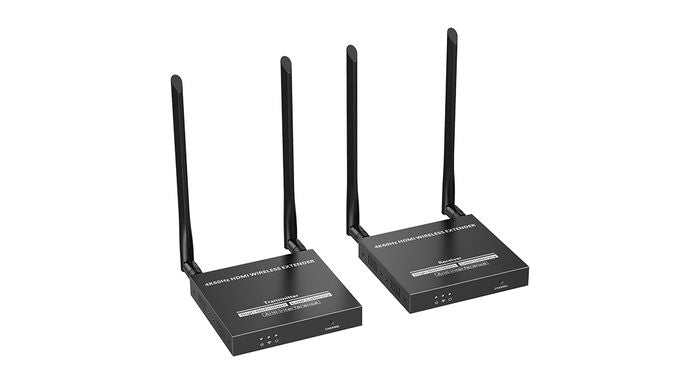

HDMI Wireless Extender to 50m, 4K@60Hz
The HDMI Wireless Extender delivers 4K@60Hz video wirelessly up to 50 metres using ipcolour STREAM technology over the 5GHz frequency band. With low latency (130–180ms), SSID pairing, an HDMI loop-out on the transmitter, and IR passback, it eliminates complicated cabling while maintaining high-definition, interference-resistant transmission. The kit includes both a transmitter and receiver in robust iron housings with built-in lightning, surge, and ESD protection.
| 📺 4K@60Hz | 📡 50m Wireless | ⚡ 18 Gbps / HDMI 2.0 | 🔒 HDCP 1.4/2.2 | 🛡️ ESD & Surge Protected |
Specifications
| SKU | HDMIEXT50-WL |
| Product Type | HDMI Wireless Extender (TX & RX Kit) |
| HDMI Version | HDMI 2.0 |
| HDCP Version | HDCP 1.4 / 2.2 |
| Maximum Transfer Rate | 18 Gbps |
| Supported Resolutions | 3840×2160@24/30/50/60Hz, 1080P@50/60Hz, 720P@50/60Hz, 1920×1200, 2560×1440, 2560×1600 |
| Transmission Distance | ≤50m |
| Latency | 130–180ms |
| Wi-Fi Frequency Band | 5.18–5.24 GHz |
| Connection Type | One-to-one |
| SSID Pairing | Supported |
| HDMI Loop-Out | Yes (on transmitter) |
| IR Passback | 20–60kHz (receiving range ≤5m) |
| Input/Output TMDS Signal | 0.7–1.2Vp-p (TMDS) |
| Input/Output DDC Signal | 5Vp-p (TTL) |
| Power Supply | DC 5V/2A |
| Power Consumption | TX ≤6W, RX ≤4W |
| ESD Protection | Contact discharge level 3 / Air discharge level 3 – IEC61000-4-2, lightning & surge protection |
| Material | Iron |
| Dimensions (TX) | 115mm (W) × 125mm (L) × 20.6mm (H) |
| Dimensions (RX) | 115mm (W) × 125mm (L) × 20.6mm (H) |
| Weight | TX: 353g, RX: 346g |
| Colour | Black |
| Working Temperature | -20–60°C |
| Storage Temperature | -30–70°C |
| Humidity | 0–90% RH (non-condensing) |
| Kit Contents | 1 × Transmitter, 1 × Receiver |
Key Features
Wireless 4K@60Hz Transmission to 50 Metres
Delivers full 3840×2160 at up to 60Hz wirelessly over distances up to 50 metres using ipcolour STREAM technology, supporting a wide range of widescreen resolutions including 2560×1600 and 2560×1440.
5GHz Anti-Interference Technology
Operates on the 5.18–5.24 GHz frequency band, providing stable, interference-resistant wireless performance that won’t compete with congested 2.4GHz networks.
Low Latency
Achieves 130–180ms latency, keeping video and audio closely synchronised for presentations, digital signage, meeting rooms, and home entertainment.
HDMI Loop-Out
The transmitter includes a dedicated HDMI loop-out port for connecting a local monitor at the source end, enabling preview or confidence monitoring alongside the wireless output.
IR Passback (20–60kHz)
Supports infrared passthrough for standard 20–60kHz IR devices with a receiving range of up to 5 metres, allowing remote control of the source device from the display location.
Lightning, Surge & ESD Protection
Built-in protection to IEC61000-4-2 with contact and air discharge level 3 ratings, plus lightning and surge protection, safeguarding connected equipment in demanding environments.
Wide Source Compatibility
Works with PCs, laptops, DSLR cameras, NVR/DVR units, media players, and any HDMI 2.0 source device. SSID-based pairing secures the one-to-one wireless link with no drivers or software required.
