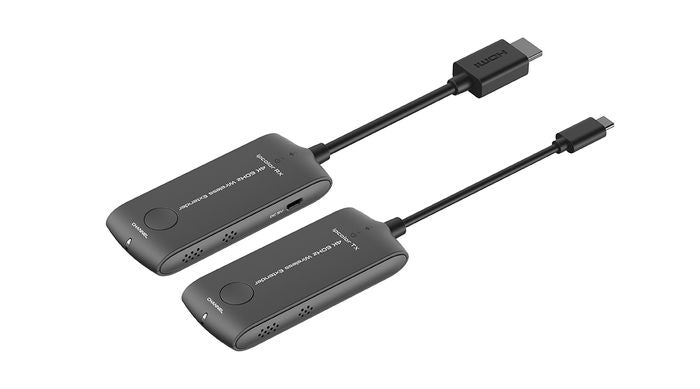

HDMI Wireless Extender (Type C USB to HDMI) to 20m, 4K@60Hz
The HDMI Wireless Extender (Type C USB to HDMI) delivers 4K@60Hz video wirelessly up to 20 metres using ipcolour STREAM technology over the 5GHz frequency band. With low latency (100–250ms), SSID pairing, and a compact form factor, it eliminates complicated cabling runs while maintaining high-definition, interference-resistant transmission. The kit includes both a transmitter and receiver — simply plug in and pair.
| 📺 4K@60Hz | 📡 20m Wireless | ⚡ 18 Gbps / HDMI 2.0 | 🔒 HDCP 1.4/2.2 | 📦 TX & RX Included |
Specifications
| SKU | HDMIEXT20-WL-USB |
| Product Type | HDMI Wireless Extender (Type C USB to HDMI) |
| HDMI Version | HDMI 2.0 |
| HDCP Version | HDCP 1.4 / 2.2 |
| Maximum Transfer Rate | 18 Gbps |
| Supported Resolutions | 3840×2160@24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 & RGB), 1080P@50/60Hz, 720P@50/60Hz, 1920×1200@60Hz |
| Transmission Distance | ≤20m |
| Latency | 100–250ms |
| Wi-Fi Frequency Band | 5.18–5.24 GHz |
| Connection Type | One-to-one |
| SSID Pairing | Supported |
| Input/Output TMDS Signal | 0.7–1.2Vp-p (TMDS) |
| Input/Output DDC Signal | 5Vp-p (TTL) |
| Power Supply | Micro USB (5V/1A) |
| Power Consumption | TX <5W, RX <3.5W |
| ESD Protection | Contact discharge level 3 / Air discharge level 3 (IEC61000-4-2) |
| Dimensions (TX) | 40.2mm (W) × 230mm (L) × 15.0mm (H) |
| Dimensions (RX) | 40.2mm (W) × 230mm (L) × 15.0mm (H) |
| Working Temperature | -20–50°C |
| Storage Temperature | -30–70°C |
| Humidity | 0–90% RH (non-condensing) |
| Kit Contents | 1 × Transmitter, 1 × Receiver |
Key Features
Wireless 4K@60Hz Transmission
Delivers full 3840×2160 at up to 60Hz wirelessly over distances up to 20 metres, supporting YUV 4:4:4, YUV 4:2:2, and RGB colour spaces for sharp, accurate visuals without running cables.
5GHz Anti-Interference Technology
Operates on the 5.18–5.24 GHz frequency band using ipcolour STREAM technology, providing stable, interference-resistant wireless performance that won’t compete with congested 2.4GHz networks.
Low Latency
Achieves 100–250ms latency, keeping video and audio closely synchronised for presentations, digital signage, and general display applications.
USB Type C Transmitter Input
The transmitter connects via USB Type C, making it directly compatible with modern laptops, tablets, and smartphones without the need for additional dongles or adapters.
SSID Pairing & Plug-and-Play
Simple SSID-based pairing secures the one-to-one wireless link between the transmitter and receiver. No drivers or software required — just connect and go.
Ultra-Compact Form Factor
Both the transmitter and receiver measure just 40.2 × 230 × 15mm, making them easy to tuck behind a display, slip into a laptop bag, or mount discreetly in a meeting room setup.
