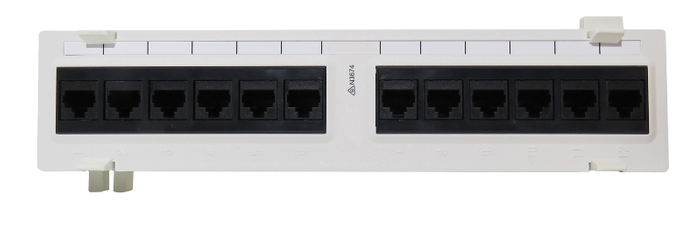

Mini 12 Port Surface Mount Patch Panel, Cat6 Rated
Mini 12 Port Surface Mount Patch Panel, Cat6 Rated
Hover to zoom
In Stock

Mini 12 Port Surface Mount Patch Panel, Cat6 Rated

CERTECH |SKU: PPMINI12C6B
No reviews| Ask a question
$64.90
$59.00 ex. GST
Tax included ·Shipping calculated at checkout
Color: White
Secure checkout:
american_express
apple_pay
google_pay
master
paypal
shopify_pay
unionpay
visa
Store Availability
Sydney Warehouse – In stock | Usually ready in 2 hours
1/33 Heathcote Road , Moorebank NSW 2170
Fast Fullfilnent
Same Day Pickup. Dispatch in 24hours
Tested In Australia
Built for Australian Conditions
Support
Reach out with any questions!
Product Description
Mini 12 Port Surface Mount Patch Panel, Cat6 Rated



Performance Meets Cat.6 EIA/TIA 568B.2-1 Standard
Material
Plastic Body Fireproof ABS UL-94V0
RJ-45 Jack Housing-PBT 8P8C 50 micro inches gold plated
PCB FR-4 / 1.6mm UL-94-V0
IDB Body Fireproof ABS UL-94V0
IDC Pin Bronze & Tinned
Label Colour Code T568A
IDC Description 22-26AWG; 110 & Krone Compatible
Electrical Specifications
Insulation Resistance 500m ohms (min.)
Contact Resistance 20m ohms (max.)
Current Rating 1.5 Amps
DC Resistance 0.1 ohm (max.)
Wisthstanding Voltage 1000 VAC RMS @ 60Hz / 1min
Mechanical Specifications
IDC Punch Down Cycle Over 250 cycles (min.)
RJ-45 Jack Insertion Cycle Over 2000 cycles (min.)
Operation Temperature -40~+70°C
