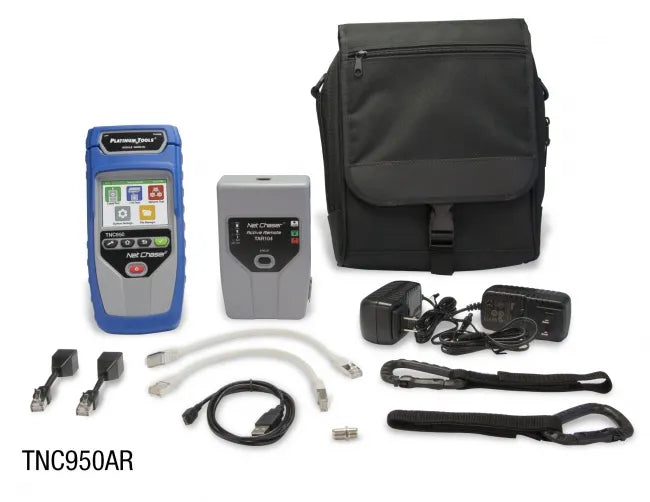

Platinum Tools Net Chaser Ethernet Speed Certifier & Network Tester
The Platinum Tools Net Chaser™ is an Ethernet speed certifier and network tester that validates data-carrying capability on copper cabling up to 1 Gb/s to IEEE 802.3 standards. It combines speed certification, cable testing to TIA568A/B, and advanced network discovery into a single handheld unit — testing for noise, detecting wiring faults, and confirming that cables can support active equipment speeds.
| ⚡ 1 Gb/s Speed Certification | ✅ IEEE 802.3 & TIA568A/B | 🔍 PoE Detection & Load Test | 🌐 Network Discovery & Mapping |
Specifications
| SKU | TNC950AR |
| Product Type | Ethernet Speed Certifier & Network Tester |
| Speed Certification | Up to 1 Gb/s (IEEE 802.3) |
| Cable Testing Standard | TIA568A/B |
| BERT Test Speeds | 100 Mbps & 1 Gbps |
| PoE Detection | IEEE 802.3af/at with load test for voltage drop & pair class identification |
| IP Support | IPv4 |
| Ping Targets | Up to 8 simultaneous IP or URL targets |
| Protocol Discovery | CDP, LLDP, DHCP, DNS |
| Cable Continuity | RJ45 & Coax |
| ID Only Remotes | Up to 20 (Network & Coax) |
| Testing & ID Remotes | Up to 8 |
Key Features
Speed Certification to IEEE 802.3
Certifies that installed cabling can support the speed capabilities of active equipment up to 1 Gb/s, testing for bit error rate (BERT), signal-to-noise ratio (SNR), and skew to confirm real-world performance.
Comprehensive Cable Testing
Tests to TIA568A/B standards with graphical wire-mapping that clearly highlights termination faults, plus per-pair length measurement in feet or metres and detection of opens and shorts along the cable run.
PoE Detection & Load Testing
Detects Power over Ethernet per IEEE 802.3af/at, performs a load test to measure voltage drop, and identifies which pairs carry PoE and the power class — essential for verifying PoE switch and endpoint compatibility.
Advanced Network Discovery
Performs port discovery, network mapping, VLAN discovery, traceroute, and CDP/LLDP protocol detection to give you a clear picture of network layout and the interfaces between active components such as servers, switches, and routers.
Ping & Connectivity Verification
Ping up to 8 IP or URL targets simultaneously, verify DHCP connectivity and DNS resolution, and use the link light feature to identify the corresponding port on a hub, switch, or router.
Test Reporting & Tone Generation
All test results are saved on the unit and can be easily uploaded to a computer for reporting. Built-in tone generation assists with cable identification and tracing at the patch panel or wall outlet.
